Hoan
JGX-0958 Series

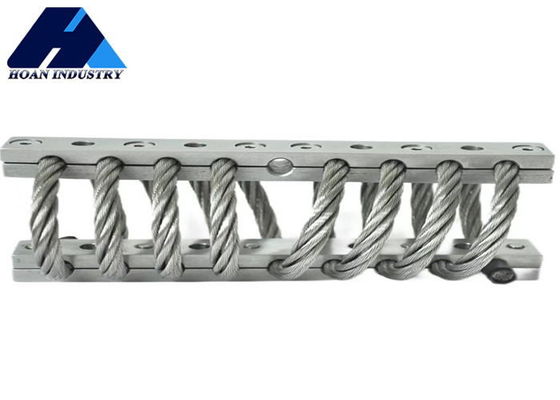

Steel Wire Rope Vibration Isolator JGX-0958A-54A sets a new benchmark for industrial vibration isolation with upgraded structure and precise parameters! Woven from multi-strand high-strength stainless steel wire ropes into a three-dimensional mesh damping structure, it’s optimized for precision instruments and automated equipment, featuring a natural frequency as low as 2.5-5Hz and 95%+ vibration isolation efficiency. It effectively isolates low-frequency vibrations and structure-borne noise from motors, machine tools, etc. Tested through 10 million fatigue cycles, it withstands -50℃~150℃ and 500-hour salt spray corrosion, suitable for harsh environments like chemical, marine, and aviation industries.
Price Advantage Meets Market Needs: With a rated load capacity of 540N and same isolation precision, JGX-0958A-54A costs only 60% of imported brands, and non-standard customization is free of charge. Volume discounts apply: 10% off for orders over 50 pieces, and 3 free samples for orders over 100 pieces, combined with 72-hour express delivery and lifetime technical support—delivering cost-effectiveness from procurement to after-sales. For precision equipment vibration isolation, it’s the optimal choice balancing performance stability and economic efficiency.
Static-Load Curve
| No | Model |
Max Static Load (kg) |
Max Defelection (mm) |
Kv(Vibration) (KN/m) |
Ks(Shock) (KN/M) |
| 1 | JGX-0958A-149A | 149 | 34.0 | 366 | 179 |
| 2 | JGX-0958A-138A | 138 | 37.1 | 320 | 152 |
| 3 | JGX-0958A-108A | 108 | 40.1 | 242 | 110 |
| 4 | JGX-0958A-99A | 99 | 44.7 | 205 | 91 |
| 5 | JGX-0958A-95A | 95 | 49.8 | 182 | 79 |
| 6 | JGX-0958A-54A | 54 | 66.0 | 86 | 33 |
| 7 | JGX-0958A-43A | 43 | 68.1 | 67 | 26 |
| No | Model |
Max Static Load (kg) |
Max Defelection (mm) |
Kv(Vibration) (KN/m) |
Ks(Shock) (KN/M) |
| 1 | JGX-0958A-149A | 120.3 | 47.8 | 236 | 103 |
| 2 | JGX-0958A-138A | 111.2 | 51.8 | 208 | 88 |
| 3 | JGX-0958A-108A | 90.8 | 55.9 | 159 | 65 |
| 4 | JGX-0958A-99A | 84.0 | 63.0 | 137 | 54 |
| 5 | JGX-0958A-95A | 79.4 | 71.1 | 123 | 47 |
| 6 | JGX-0958A-54A | 47.7 | 91.9 | 60 | 21 |
| 7 | JGX-0958A-43A | 38 | 95 | 47 | 16 |
| No | Model |
Max Static Load (kg) |
Max Defelection (mm) |
Kv(Vibration) (KN/m) |
Ks(Shock) (KN/M) |
| 1 | JGX-0958A-149A | 93.1 | 36.1 | 130 | 130 |
| 2 | JGX-0958A-138A | 88.5 | 39.1 | 112 | 112 |
| 3 | JGX-0958A-108A | 68.1 | 42.2 | 77 | 77 |
| 4 | JGX-0958A-99A | 63.6 | 47.2 | 65 | 65 |
| 5 | JGX-0958A-95A | 61.3 | 52.8 | 60 | 60 |
| 6 | JGX-0958A-54A | 27.2 | 68.1 | 27 | 27 |
| 7 | JGX-0958A-43A | 20.4 | 71.7 | 19 | 19 |
FAQ
1.Q:Are you a manufacturer or a trading company?
