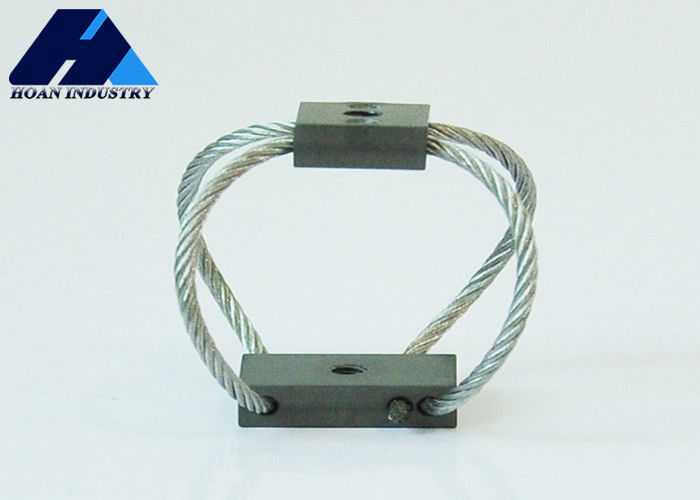

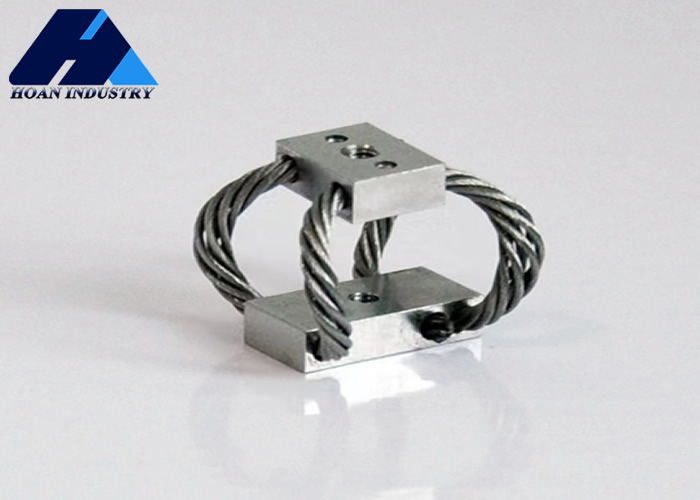

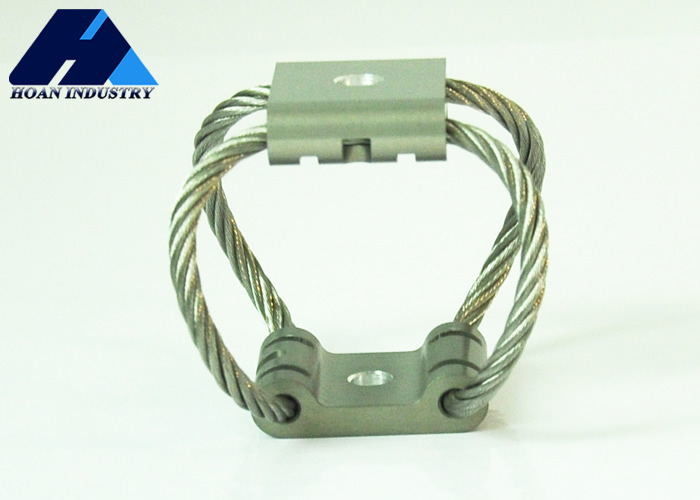

Name: GR6-36A-A Wire Rope Vibration Isolator for Military and Aerospace
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: GR6-36A-A
Availability: InStock

집 > 상품 > 와이어 로프 제진기 >

GR6-36A-A Wire Rope Vibration Isolator for Military and Aerospace

military wire rope vibration isolator

aerospace wire rope isolator

GR6-36A-A vibration isolator

Place of Origin:

China

브랜드 이름:

Hoan

Model Number:

GR6-36A-A

문서:

GR6 series Vibration Isolat...or.pdf

저희와 연락

인용 을 요청 하십시오

GR6-36A-A Wire Rope Vibration Isolator for Military and Aerospace

제품 세부 정보

Shock Resistance:

20g/11ms

Core Components:

PLC, Gear

Wire Rope Material:

Galvanized Steel

Application:

Vibration Isolation and Shock Absorption

Wire Rope Diameter:

3mm

Installation Orientation:

Vertical or Horizontal

Installation Method:

Suspension

Isolation Frequency:

5Hz

Type:

Shock Absorber

Applicable Industries:

Building Material Shops, Energy & Mining

Operating Temperature:

-40°C to 120°C

Flexible And Durable:

Yes

강조하다:

military wire rope vibration isolator

aerospace wire rope isolator

GR6-36A-A vibration isolator

지불 및 배송 조건

Minimum Order Quantity

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

GR6-67A-A Wire Rope Vibration Isolator for Industrial Machinery

가장 좋은 가격 을 구하라

GR6-93A-A Steel Wire Rope Vibration Isolator for Industrial Machinery

가장 좋은 가격 을 구하라

GR6-142A-A Wire Rope Vibration Isolator for Industrial Engine Mounts

가장 좋은 가격 을 구하라

GR5-16A-A 낮은 주파수 진동을 위한 철회로 진동 격리기

가장 좋은 가격 을 구하라

저희와 연락

86-29-88292913

지금 연락하세요

제품 설명

GR6-36A-A Wire Rope Vibration Isolator for Military and Aerospace Applications

Product Attributes

Shock Resistance

20g/11ms

Core Components

PLC, Gear

Wire Rope Material

Galvanized Steel

Application

Vibration Isolation and Shock Absorption

Wire Rope Diameter

3mm

Installation Orientation

Vertical or Horizontal

Installation Method

Suspension

Isolation Frequency

5Hz

Type

Shock Absorber

Applicable Industries

Building Material Shops, Energy & Mining

Operating Temperature

-40°C to 120°C

Flexible And Durable

Yes

Product Description

GR6 Series - Excellent Performance and Wide Applications

The GR6 series steel wire rope vibration isolators from Xi'an Hoan Microwave Co., Ltd. demonstrate remarkable performance. This series uses steel wire ropes as elastic bodies, achieving efficient vibration isolation and buffering through friction and sliding between strands and between wires of the steel wire ropes.

Key Features:

Low natural frequency and large static compression for excellent low-frequency vibration reduction
Resists corrosion from oil, water and organic solvents
Unaffected by changes in environmental temperature
Not prone to aging or stress relaxation

Widely used in military electronic equipment, aerospace communication, postal and telecommunications, civil petroleum electrical appliances, instruments and meters, vehicle-mounted and shipborne equipment.

Dimension Parameters

Model	Height (mm)	Width (mm)	Weight (kg)	Mounting Options	Thru Hole (mm)	Thread (mm)	C'sink (°)
GR6-142A-A	47	54	0.91	A,B,C,D,E,S	∅7	M6*1.0	90
GR6-93A-A	55	59	0.99
GR6-67A-A	64	64	0.99
GR6-36A-A	79	73	0.99

Static-Load Curve

No.	Model	Max Static Load (N)	Max Deflection (mm)	Kv(Vibration) (KN/m)	Ks(Shock) (KN/m)
1	GR6-142A-A	142	22.1	32	16
2	GR6-93A-A	93	29.5	20	9.6
3	GR6-67A-A	67	37.6	15	5.3
4	GR6-36A-A	36	51.6	7.9	2.6

Product Material Options

Mounting Splint Material: Stainless Steel or Aluminum

Surface Treatment Options for Aluminum Alloy Mounting Cleats:

White Anodizing: Makes the aluminum surface harder while maintaining its natural color - standard surface treatment
Hard Anodizing: Creates a much harder surface with darker color - recommended for complex or special working conditions

Unique Characteristics

No creep or ageing
High internal damping
Very wide temperature range (-40°C to 120°C)
Wide variety of possible fittings
Rapid and economical prototyping
Extremely rugged construction and long lifespan
Excellent combined shock and vibration isolation
Unaffected by chemical agents, seawater, ozone, UV rays
