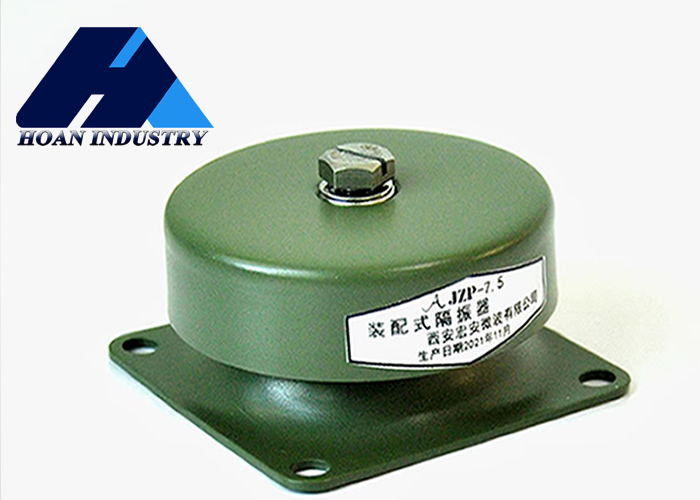

Name: JZP-6.0-SC-SC1 Series Rubber Shock Absorber with 5Hz Isolation Frequency 6kg Maximum Load Capacity and M5 Mounting Holes
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JZP-6.0SC-SC1
Availability: InStock

집 > 상품 > 고무 감진기 >

JZP-6.0-SC-SC1 Series Rubber Shock Absorber with 5Hz Isolation Frequency 6kg Maximum Load Capacity and M5 Mounting Holes

5Hz Isolation Frequency Rubber Shock Absorber

6kg Maximum Load Capacity Vibration Isolator

M5 Mounting Holes Friction Damping Vibration Isolator

원래 장소:

중국

브랜드 이름:

Hoan

모델 번호:

JZP-6.0SC-SC1

저희와 연락

인용 을 요청 하십시오

JZP-6.0-SC-SC1 Series Rubber Shock Absorber with 5Hz Isolation Frequency 6kg Maximum Load Capacity and M5 Mounting Holes

제품 세부 정보

분리 주파수:

5Hz

모델:

JZP

최대 부하 용량:

6kg

재료:

고무

애플리오케이션:

자동차, 기계, 엔진

작동 주파수:

크기와 유형에 따라 다릅니다

기능:

에너지를 흡수하여 열로 방출

전체 너비:

50mm

장수:

오래 지속됩니다

특성:

넓은 작업 주파수, 긴 수명

스프링 비율:

100-1000파운드/인치

장착 구멍:

구조:

단단한

강조하다:

5Hz Isolation Frequency Rubber Shock Absorber

6kg Maximum Load Capacity Vibration Isolator

M5 Mounting Holes Friction Damping Vibration Isolator

지불 및 배송 조건

최소 주문 수량

지불 조건

L/C, D/A, D/P, T/T, Western Union, MoneyGram

JZP-13.5-SC-SC1 Rubber Shock Absorber with Damping Ratio 0.5 1 Year Warranty and 60mm Length for Sustainable Manufacturing

가장 좋은 가격 을 구하라

JZP-10.5-SC-SC1 Rubber Shock Absorber with 10Hz to 100Hz Frequency Range and -55 to +120 Working Temperature for Horizontal/Vertical Installation

가장 좋은 가격 을 구하라

JZP-9.0-SC-SC1 Rubber Shock Absorber with Temperature Resistance Up to 100 Degrees Celsius 50mm Width and 30 Hz Resonance Frequency for Industrial Machinery

가장 좋은 가격 을 구하라

JZP-7.5-SC-SC1 Friction Damping Vibration Isolator with Up to 90% Vibration Isolation M5 Mounting Thread Size and 50N/mm Axial Stiffness

가장 좋은 가격 을 구하라

저희와 연락

86-29-88292913

지금 연락하세요

제품 설명

JZP-6.0-SC-SC1 Series - The Most Versatile Vibration Isolation Solution for Industrial Applications

Customized Vibration Isolation Solutions

Xi'an Hoan Microwave's JZP-SC-SC1 series friction damping vibration isolators are engineered for maximum application flexibility in diverse industrial scenarios. These solutions can be precisely tailored through selection, combination, and fine-tuning to meet specific vibration control requirements.

Key Features

Modular design accommodates loads from dozens of kilograms to several tons
Flexible configuration options for individual use or combined systems
Optimized for various applications from laboratory balances to CNC machining centers
Custom development available for specialized requirements
Special surface treatments (nickel plating, passivation) for cleanroom environments
Adjustable damping parameters for impact-resistant applications

Dimension Parameters

Model	D (mm)	H±1 (mm)	h (mm)	A±0.2 (mm)	B (mm)	d	d2	R	b (mm)
JZP-SC-SC1	60	36	24.5	50	60	M5	∅5.5	5	28

Technical Parameters

Model	Nominal Load (KG)	Static Displacement (mm)	Working Temperature (℃)	Resonance Frequency (Hz)	Impact Test	Limited Period
JMZ-3.2-SC-SC1	3.2	≤0.3	-45～+65	41.5±5	100g 12 times	8
JMZ-4.2-SC-SC1	4.2
JMZ-5.2-SC-SC1	5.2
JMZ-6.0-SC-SC1	6.0
JMZ-7.0-SC-SC1	7.0
JZP-7.5-SC-SC1	7.5
JZP-9.0-SC-SC1	9.0
JZP-10.5-SC-SC1	10.5
JZP-13.5-SC-SC1	13.5
JZP-15-SC-SC1	15

Customer Implementation

This engineering-focused approach ensures the JZP-SC-SC1 series provides optimal vibration isolation solutions tailored to each customer's specific equipment and operational requirements.
