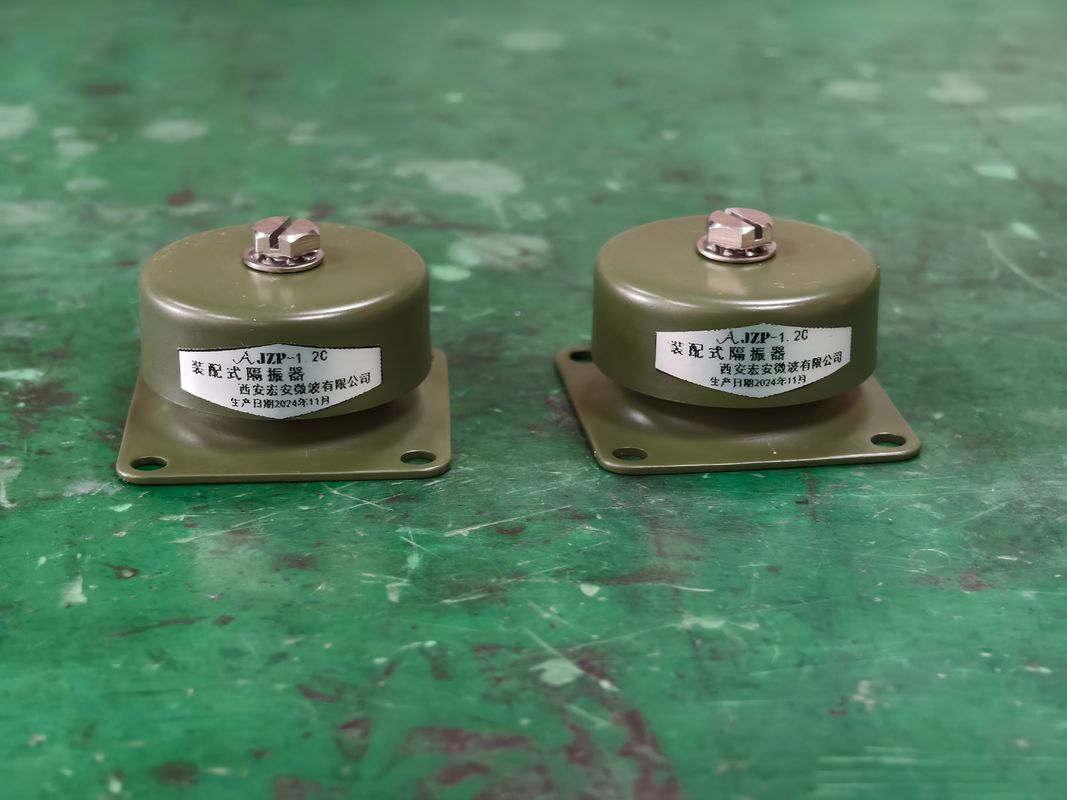

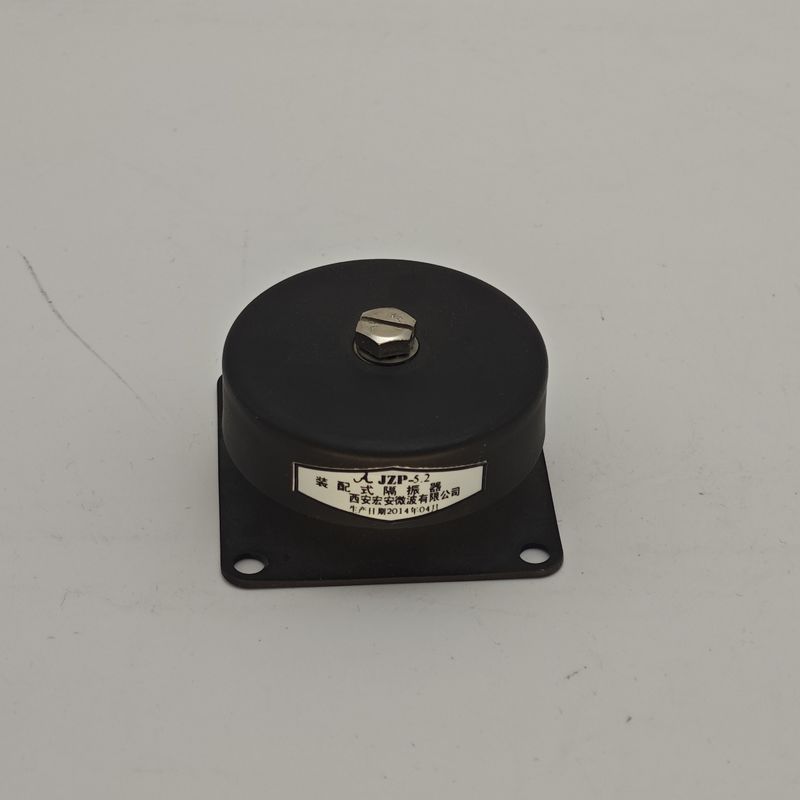

Name: JZP-2.0B-SC Rubber Shock Absorber with Anchoring Holes and 30mm Height for Effective Energy Absorption
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JZP-2.0B-SC
Availability: InStock

집 > 상품 > 고무 감진기 >

JZP-2.0B-SC Rubber Shock Absorber with Anchoring Holes and 30mm Height for Effective Energy Absorption

30mm Rubber Shock Absorber

Anchoring Holes Vibration Isolator

Energy Absorption JZP Series

원래 장소:

중국

브랜드 이름:

Hoan

모델 번호:

JZP-2.0B-SC

저희와 연락

인용 을 요청 하십시오

JZP-2.0B-SC Rubber Shock Absorber with Anchoring Holes and 30mm Height for Effective Energy Absorption

제품 세부 정보

특성:

넓은 작업 주파수, 긴 수명

작동 온도:

-55 ~ +120

키:

30mm

제품 인증:

ISO 9001

지름:

0.25-2 인치

포트:

xi'an 또는 지정되었습니다

특징:

고정 구멍; 오일 저항성

포장:

표준 포장

작동 온도:

: -55 ~ +120

색상:

검은색

부속품:

그물

기능:

에너지를 흡수하여 열로 방출

강조하다:

30mm Rubber Shock Absorber

Anchoring Holes Vibration Isolator

Energy Absorption JZP Series

지불 및 배송 조건

최소 주문 수량

지불 조건

L/C,D/A,D/P,T/T,웨스턴 유니온,MoneyGram

JZP-5.5B-SC Rubber Shock Absorber with Vibration Frequency 5-50Hz and Max Static Load 5.5Kg in 3-24 Inches Length

가장 좋은 가격 을 구하라

JZP-5.0B-SC Rubber Shock Absorber with 10Hz to 100Hz Frequency Range High Vibration Resistance for On-Vehicle Efficiency Validation New Product 2025

가장 좋은 가격 을 구하라

JZP-4.0B-SC Rubber Shock Absorber with M5 Mounting Holes 30mm Height and High Pressure Resistance for Vibration Isolation

가장 좋은 가격 을 구하라

JZP-3.5B-SC Modular Rubber Shock Absorber with 5-6KG Load Range 1:2 Compression Ratio and 40g/11ms Shock Resistance

가장 좋은 가격 을 구하라

저희와 연락

86-29-88292913

지금 연락하세요

제품 설명

Rubber Shock Absorber for On-Vehicle Equipment JZP-2.0B-SC for Long-Term Cost Reduction Efficiency Enhancement

JZP-B-SC Series

Engineering Wisdom for Cost Reduction & Efficiency Enhancement: The Whole-Life-Cycle Value of Xi'an Hoan's JZP Series Vibration Isolators

When procuring on-vehicle equipment components, the initial cost is just the beginning. The JZP Series On-Vehicle Modular Vibration Isolators from Xi'an Hoan Microwave Co., Ltd. offer exceptional engineering design and long-lasting reliability, delivering outstanding whole-life-cycle value for users seeking long-term cost reduction and efficiency enhancement.

Reducing Maintenance Costs: Equipment without proper vibration isolation experiences exponentially higher failure rates. The JZP Series minimizes equipment failures through source protection, significantly reducing repair costs and downtime.
Extending Equipment Service Life: Vibration and impact are primary causes of electronic equipment failure. JZP vibration isolators provide life-extension protection for precision devices, delaying expensive replacement cycles and improving ROI.
Enhancing System Availability: For critical applications like emergency communications and military operations, the JZP Series ensures continuous equipment operation during movement, where its value far exceeds its purchase price.

Choosing Xi'an Hoan's JZP Series represents a forward-looking, highly cost-effective strategic investment rather than a simple procurement decision.

Dimension Parameter Table

Model	D (mm)	H±1 (mm)	h (mm)	A±0.2 (mm)	B (mm)	d	d2	R	B (mm)
JZP-B-SC	46	30	21	40	50	M4	∅5.5	5	22

Technical Parameter Table

Model	Nominal Load (kg)	Static Displacement (mm)	Working Temperature (℃)	Resonance Frequency (Hz)	Impact Test	Valid Period (year)
JZP-1.0B-SC	1.0	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-1.5B-SC	1.5	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-2.0B-SC	2.0	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-2.5B-SC	2.5	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-3.0B-SC	3.0	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-3.5B-SC	3.5	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-4.0B-SC	4.0	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-5.0B-SC	5.0	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-5.5B-SC	5.5	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-6.0B-SC	6.0	≤0.3	-45～+65	41.5±5	100G12times	8

Vibration and Impact Performance Curves

Vibration Performance

Impact Performance
