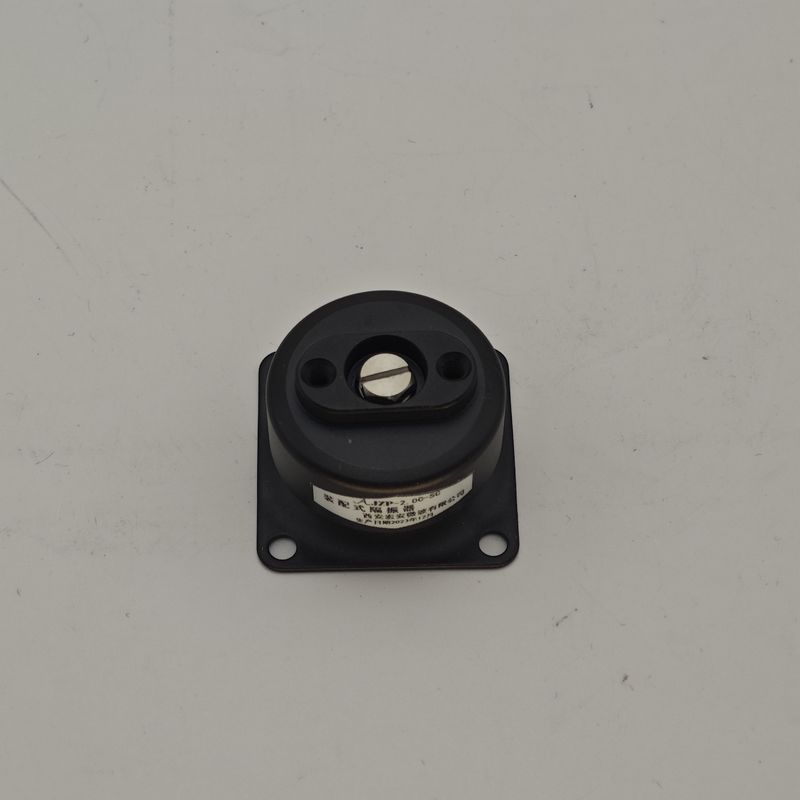

Name: JZP-3.0B-SC Rubber Shock Absorber with 3Kg Max Static Load 5-50Hz Vibration Frequency and 1 Year Warranty for Extreme Conditions
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JZP-3.0B-SC
Availability: InStock

집 > 상품 > 고무 감진기 >

JZP-3.0B-SC Rubber Shock Absorber with 3Kg Max Static Load 5-50Hz Vibration Frequency and 1 Year Warranty for Extreme Conditions

3Kg Max Static Load Rubber Shock Absorber

5-50Hz Vibration Frequency Vibration Isolator

1 Year Warranty JZP Series Shock Absorber

원래 장소:

중국

브랜드 이름:

Hoan

모델 번호:

JZP-3.0B-SC

저희와 연락

인용 을 요청 하십시오

JZP-3.0B-SC Rubber Shock Absorber with 3Kg Max Static Load 5-50Hz Vibration Frequency and 1 Year Warranty for Extreme Conditions

제품 세부 정보

모양:

원통형

색상:

검은색

최대 정적 부하:

3kg

진동 주파수:

5-50HZ

부식 저항:

부식에 저항합니다

장착 유형:

나사산

특성:

넓은 작업 주파수, 긴 수명

기계 시험 보고서:

사용할 수 없습니다

고유 주파수:

7Hz-15Hz

쉬운 설치:

간단하고 설치가 쉽습니다

재료:

고무

특징:

진동 분리

보증:

1년

진동 감소:

높은

강조하다:

3Kg Max Static Load Rubber Shock Absorber

5-50Hz Vibration Frequency Vibration Isolator

1 Year Warranty JZP Series Shock Absorber

지불 및 배송 조건

최소 주문 수량

지불 조건

L/C,D/A,D/P,T/T,웨스턴 유니온,MoneyGram

JZP-5.5B-SC Rubber Shock Absorber with Vibration Frequency 5-50Hz and Max Static Load 5.5Kg in 3-24 Inches Length

가장 좋은 가격 을 구하라

JZP-5.0B-SC Rubber Shock Absorber with 10Hz to 100Hz Frequency Range High Vibration Resistance for On-Vehicle Efficiency Validation New Product 2025

가장 좋은 가격 을 구하라

JZP-4.0B-SC Rubber Shock Absorber with M5 Mounting Holes 30mm Height and High Pressure Resistance for Vibration Isolation

가장 좋은 가격 을 구하라

JZP-3.5B-SC Modular Rubber Shock Absorber with 5-6KG Load Range 1:2 Compression Ratio and 40g/11ms Shock Resistance

가장 좋은 가격 을 구하라

저희와 연락

86-29-88292913

지금 연락하세요

제품 설명

JZP-3.0B-SC Engineered for Extreme Conditions - The Best Rubber Shock Absorber for Military Mining Vehicles

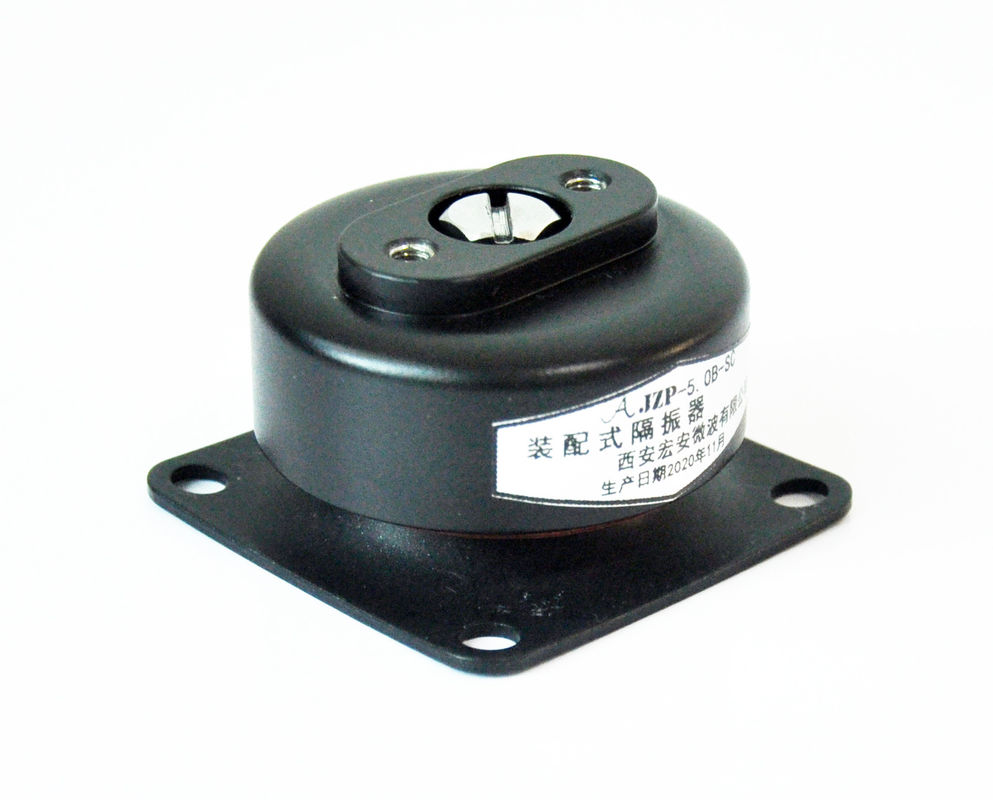

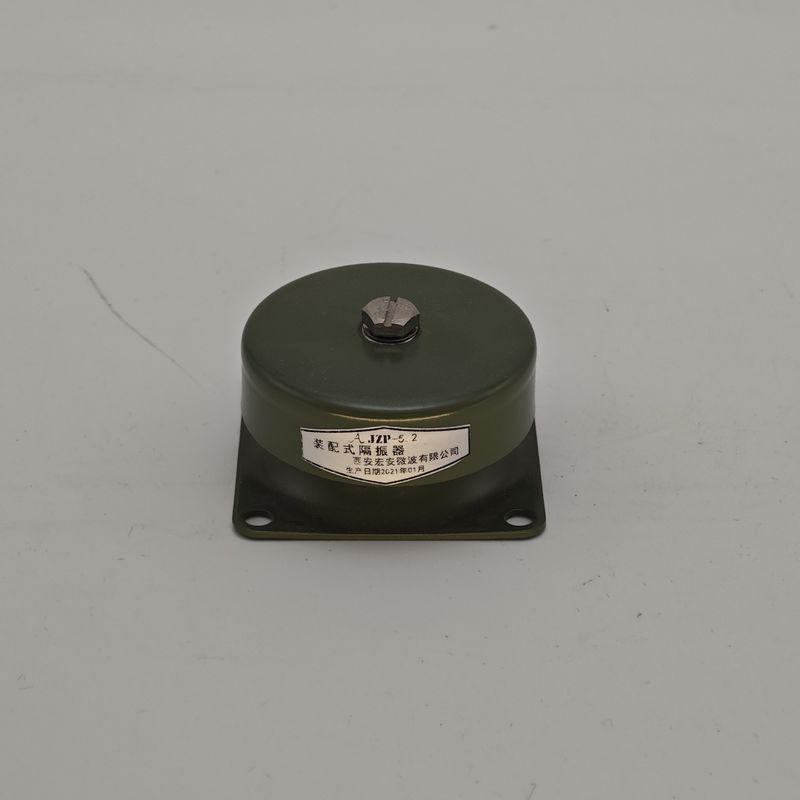

JZP-B-SC Series

Tenacious Protection, Fearless of Rough Terrain - The Outstanding Performance of Xi'an Hoan's JZP Series Under Severe Road Conditions

Not all vehicles travel on smooth highways. Military vehicles, emergency rescue vehicles, mining trucks, and geological exploration vehicles often operate in extreme conditions. Muddy roads, potholes, and gravel paths create high-intensity impacts that test equipment durability. The JZP Series On-Vehicle Modular Vibration Isolators are specifically engineered to protect equipment in these harsh environments.

Shock Isolation: Protection Beyond Conventional Vibration

Unlike steady vibration, shock is an instantaneous, high-energy excitation that can cause structural damage. The JZP Series is designed with shock isolation as a core performance feature. Its damping materials and structural design extend impact duration through large deformation, significantly reducing peak acceleration (G-force) transmitted to equipment. When a vehicle hits a deep pothole, the JZP Series acts like an "airbag" for the equipment, absorbing most damaging forces.

Durability and Environmental Adaptability

In harsh environments like sandstorms, rain, snow, and salt spray, vibration isolator durability is crucial. The JZP Series uses high-quality weather-resistant materials with advanced surface treatments (galvanizing and Dacromet coating) for excellent corrosion resistance and anti-aging properties. These isolators resist both mechanical stress and chemical/environmental erosion, offering a service life far exceeding ordinary products.

Dimension Parameters

Model	D (mm)	H±1 (mm)	h (mm)	A±0.2 (mm)	B (mm)	d	d2	R	B (mm)
JZP-B-SC	46	30	21	40	50	M4	∅5.5	5	22

Technical Parameters

Model	Nominal Load (kg)	Static Displacement (mm)	Working Temperature (℃)	Resonance Frequency (Hz)	Impact Test	Valid Period (year)
JZP-1.0B-SC	1.0	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-1.5B-SC	1.5
JZP-2.0B-SC	2.0
JZP-2.5B-SC	2.5
JZP-3.0B-SC	3.0
JZP-3.5B-SC	3.5
JZP-4.0B-SC	4.0
JZP-5.0B-SC	5.0
JZP-5.5B-SC	5.5
JZP-6.0B-SC	6.0

Vibration and Impact Performance

Vibration Performance Curve

Impact Performance Curve
