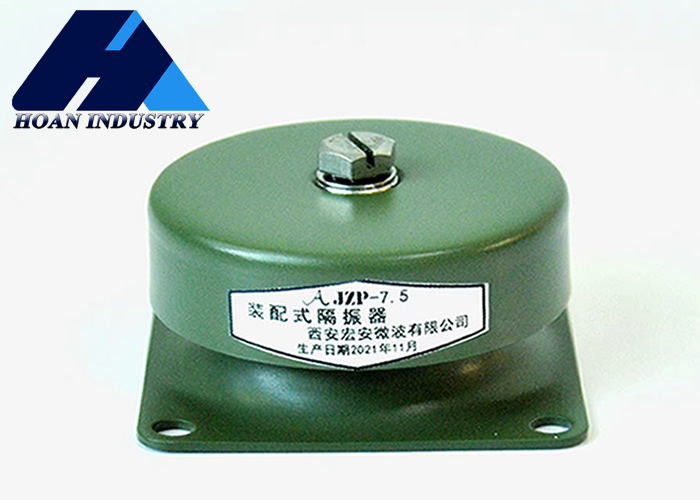

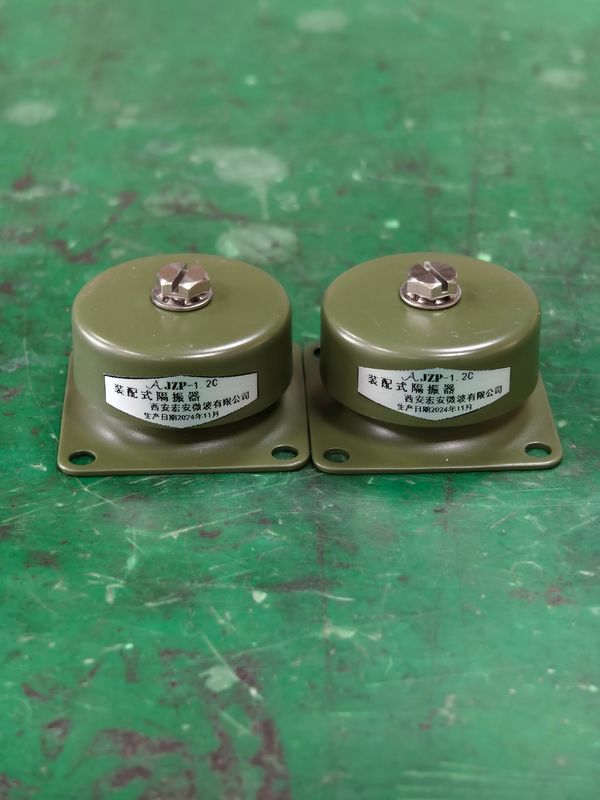

Name: JZP-4.0B-SC Rubber Shock Absorber with M5 Mounting Holes 30mm Height and High Pressure Resistance for Vibration Isolation
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JZP-4.0B-SC
Availability: InStock

집 > 상품 > 고무 감진기 >

JZP-4.0B-SC Rubber Shock Absorber with M5 Mounting Holes 30mm Height and High Pressure Resistance for Vibration Isolation

M5 Mounting Holes Rubber Shock Absorber

30mm Height Vibration Isolator

High Pressure Resistance JZP Series

원래 장소:

중국

브랜드 이름:

Hoan

모델 번호:

JZP-4.0B-SC

저희와 연락

인용 을 요청 하십시오

제품 세부 정보

특성:

넓은 작업 주파수, 긴 수명

장수:

오래 지속되는

원산지:

중국

용법:

충격과 진동을 흡수합니다.

재료:

고무

소음 감소:

소음 감소에 효과적

기계 시험 보고서:

사용할 수 없습니다

경도:

맞춤형

압력 저항:

높은

키:

30mm

저항:

화학, 열 및 날씨

진동 격리 유형:

수동적인

비용:

입수 가능한

장착 구멍:

강조하다:

M5 Mounting Holes Rubber Shock Absorber

30mm Height Vibration Isolator

High Pressure Resistance JZP Series

지불 및 배송 조건

최소 주문 수량

지불 조건

MoneyGram, Western Union, T/T, D/P, D/A, L/C.

JZP-1.5B-SC 고성능 고무 충격 흡수기

가장 좋은 가격 을 구하라

JZP-6.0B-SC Hot Product 2024 Rubber Shock Absorber with 6.7KG Load Range and Condition Monitoring

가장 좋은 가격 을 구하라

JZP-5.5B-SC Rubber Shock Absorber with Vibration Frequency 5-50Hz and Max Static Load 5.5Kg in 3-24 Inches Length

가장 좋은 가격 을 구하라

JZP-5.0B-SC 고무 충격 흡수 장치, 10Hz ~ 100Hz 주파수 범위, 차량 탑재 효율 검증용, 높은 진동 저항, 신제품 2025

가장 좋은 가격 을 구하라

저희와 연락

지금 연락하세요

제품 설명

JZP-4.0B-SC The Flexible Adaptability of Rubber Shock Absorber for Vibration Isolation Solutions

JZP-B-SC Series

Customized Vibration Isolation Solutions

While standardized products meet most requirements, specialized equipment with unique specifications or extreme performance demands require customized protection. Xi'an Hoan Microwave Co., Ltd. designed the JZP Series with powerful customization capabilities to deliver tailored vibration isolation solutions.

From Product to Solution

Xi'an Hoan provides comprehensive consulting services, analyzing equipment specifications including weight, dimensions, center of gravity, sensitive frequency bands, and operating environment. Engineers optimize selections from the JZP Series or modify existing structures with adjustments to:

Mounting hole positions
Interface types
Load-bearing stiffness

Specialized Applications

For precision instruments (electron microscopes, spectral analyzers) or heavy equipment (large battery packs, hydraulic units), Xi'an Hoan develops specialized models featuring:

Custom damping material formulations
Multi-stage vibration isolation structures
Active/semi-active control technologies

Dimension Parameters

Model	D (mm)	H±1 (mm)	h (mm)	A±0.2 (mm)	B (mm)	d	d2	R	B (mm)
JZP-B-SC	46	30	21	40	50	M4	∅5.5	5	22

Technical Parameters

Model	Nominal Load (kg)	Static Displacement (mm)	Working Temperature (℃)	Resonance Frequency (Hz)	Impact Test	Valid Period (year)
JZP-1.0B-SC	1.0	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-1.5B-SC	1.5	Same as above
JZP-2.0B-SC	2.0	Same as above
JZP-2.5B-SC	2.5	Same as above
JZP-3.0B-SC	3.0	Same as above
JZP-3.5B-SC	3.5	Same as above
JZP-4.0B-SC	4.0	Same as above
JZP-5.0B-SC	5.0	Same as above
JZP-5.5B-SC	5.5	Same as above
JZP-6.0B-SC	6.0	Same as above

Performance Curves

Vibration

Impact
