JGX-0400D-37A Wire Rope Vibration Isolator Maintenance-Free Solution Multi-Directional Isolation Performance

JGX-0400D-37A Wire Rope Vibration Isolator – Zero-Maintenance Multi-Directional Isolation for Critical Equipment

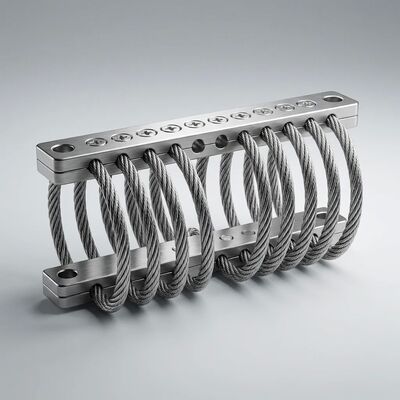

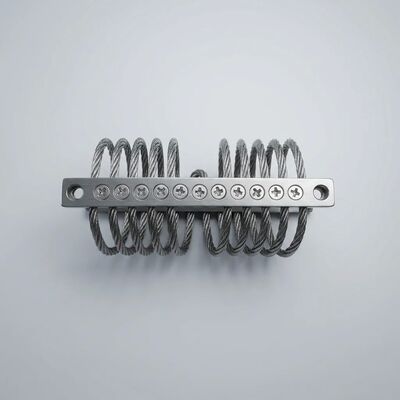

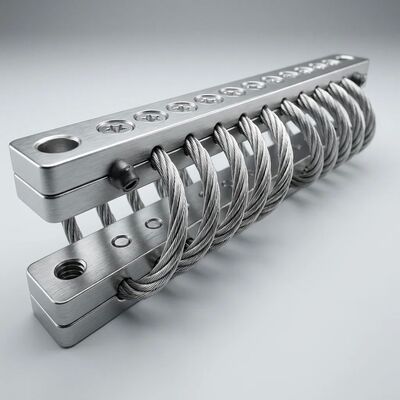

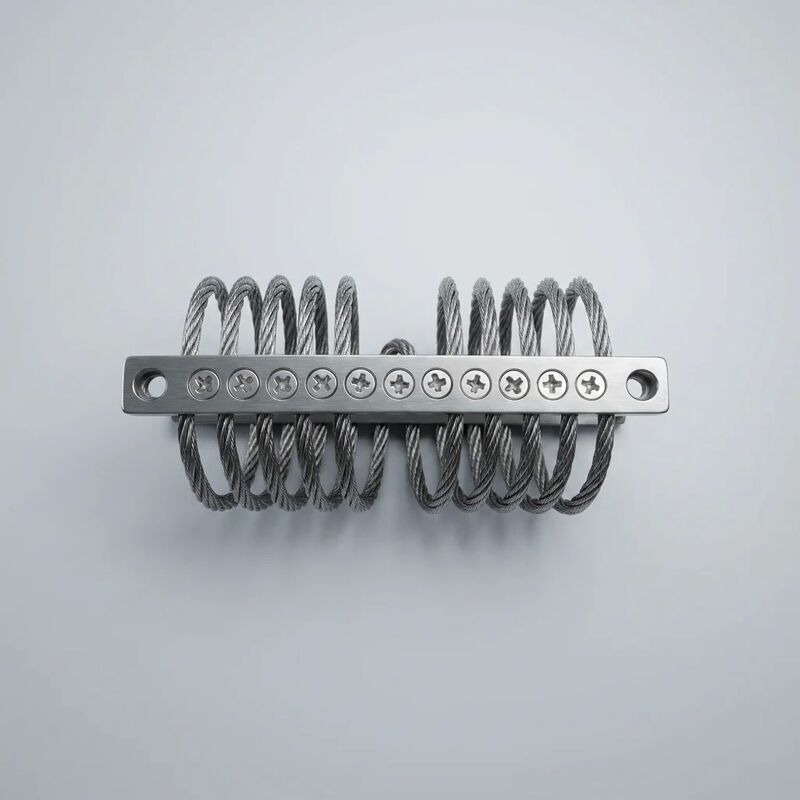

The JGX-0400D-37A Wire Rope Vibration Isolator delivers a completely lubrication-free, adjustment-free vibration control solution that operates reliably for the full equipment lifecycle without scheduled service interventions. Unlike conventional elastomeric or spring-damper mounts that degrade, creep, or require periodic retorquing, this all-metal isolator maintains its designated performance envelope through millions of load cycles. The 6-coil helical Stainless Steel 304 wire rope assembly isolates vibration simultaneously across three translational and three rotational axes, making it a single-component solution for complex multi-directional isolation requirements.

Why Maintenance-Free Matters

• Zero Scheduled Downtime: Contains no rubber elements subject to ozone cracking, no hydraulic fluid requiring level checks, and no sliding surfaces needing grease replenishment. Install once and operate continuously for the rated >10&sup7; cycle fatigue life without maintenance access.
• Total Cost of Ownership Advantage: Eliminates recurring costs for replacement isolator elements, service technician callouts, and production line stoppages associated with failed conventional mounts. Typical elastomeric isolators require replacement every 3–5 years in industrial environments; the JGX-0400D-37A eliminates this replacement cycle entirely.
• Predictable Long-Term Performance: Stainless Steel 304 does not experience the progressive stiffness drift, compression set, or thermal aging that plague rubber and polyurethane mounts. Isolation efficiency remains consistent from the first day of service through decades of operation.

Multi-Directional Isolation Architecture

• Six-Degree-of-Freedom Vibration Control: The helical wire rope geometry responds elastically to excitation in all directions—vertical compression/tension, lateral shear, and rotational roll/pitch/yaw—eliminating the need for separate isolators oriented along different axes.
• Nonlinear Progressive Stiffness: The coil geometry provides soft initial response for small-amplitude continuous vibration (excellent isolation) transitioning to progressive stiffening under high-amplitude shock loads (excellent energy absorption). This dual-mode behavior is not achievable with linear spring or rubber isolators.
• Coulomb Friction Damping: Inter-wire friction within the 7×19 stranded construction provides inherent amplitude-dependent damping—higher damping at large displacements for shock control, lower damping at small displacements for superior high-frequency isolation—without viscous dampers or external devices.

Complete Technical Specifications

Diverse Application Scenarios

• Emergency Backup Power Systems: Provides fail-safe vibration isolation for hospital standby generators, data center UPS flywheel systems, and telecommunications backup power units where maintenance access is extremely limited and reliability is non-negotiable.
• Precision Measurement & Laboratory Equipment: Isolates coordinate measuring machines (CMM), optical inspection benches, electron microscopes, and semiconductor wafer inspection tools from building-borne vibration without introducing magnetic interference.
• Construction & Heavy Earthmoving Machinery: Protects operator cabin mounts, engine ECU enclosures, and hydraulic valve blocks on excavators, bulldozers, and wheel loaders from continuous shock and vibration in quarry and construction site environments.
• Offshore Platform & Marine Deck Equipment: Certified for continuous salt spray exposure in offshore oil & gas platform pump skids, deck crane operator cabins, FPSO turret equipment, and shipboard auxiliary machinery with zero corrosion-related failures over 15-year design life.
• Telecommunications Shelter Equipment: Isolates base station radio units, microwave backhaul equipment, and battery backup racks in remote cellular tower shelters where annual maintenance visits are cost-prohibitive.
• Pharmaceutical & Food Processing Machinery: Stainless Steel 304 construction meets hygiene requirements for tablet press isolation, centrifuge mounting, and packaging line vibration control in GMP-compliant cleanroom environments.

Why Source from ECER? We manufacture wire rope vibration isolators under ISO 9001:2015 quality management with full material traceability and lot-level testing documentation. Our engineering team provides complimentary application analysis including finite element simulation and transmissibility curve prediction for your specific equipment parameters. Inquire now for technical datasheets, 3D CAD models (STEP/IGES format), or a customized quotation for OEM volume requirements.
