Place of Origin:
China
브랜드 이름:
Hoan
인증:
ISO9001:2015
Model Number:

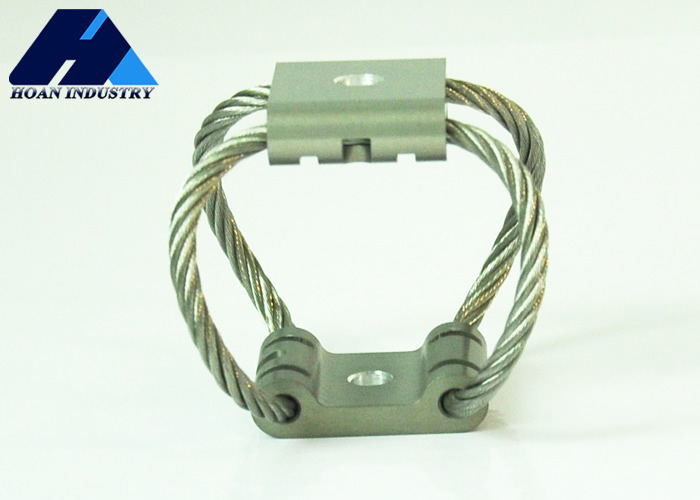

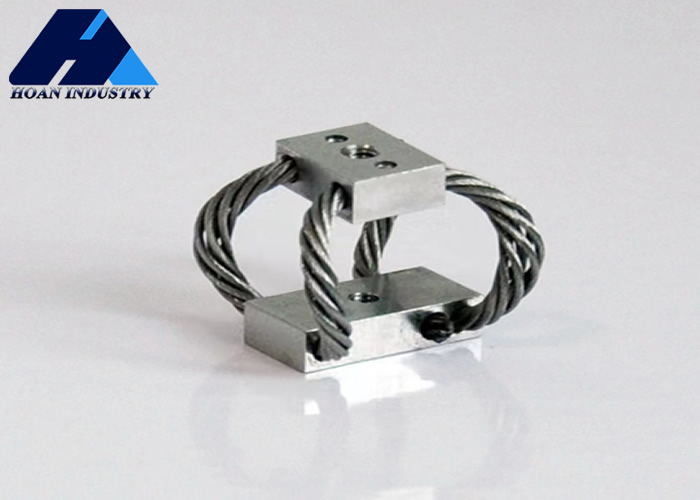

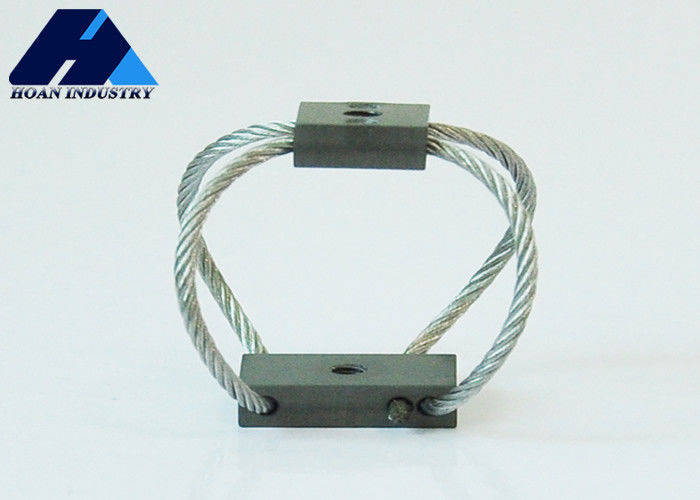

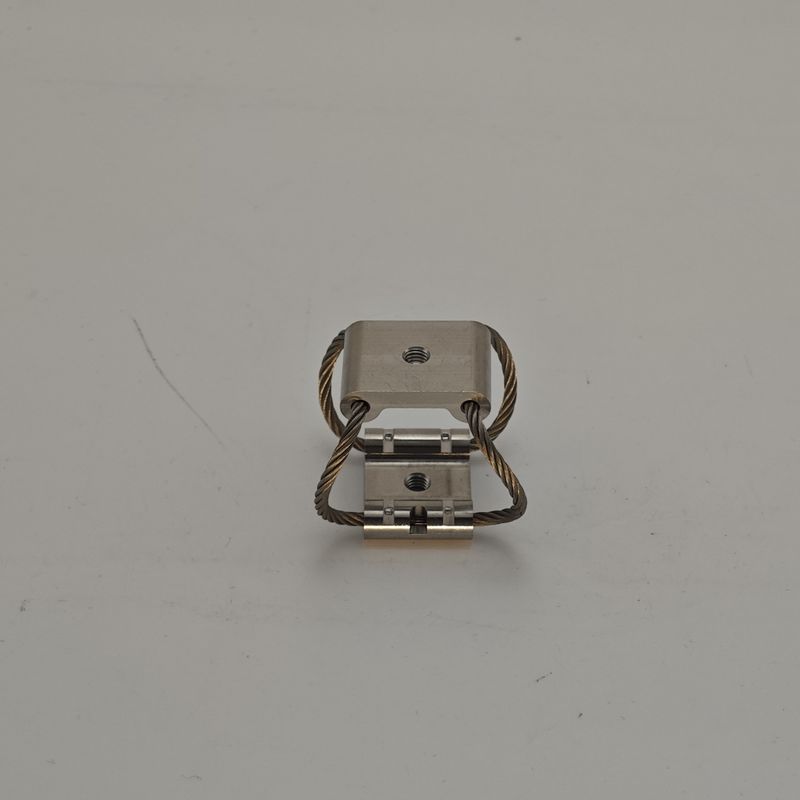

GR2-6.7A-A
문서:
| Attribute | Value |
|---|---|
| Mounting Type | Screw-in |
| Condition | New |
| Core Components | Gear |
| Port | Xi'an or Specified |
| Compatibility | Universal |
| Type | SHOCK ABSORBER |
| Color | Black |
| Adjustable | Yes |
| After Warranty Service | Online support |
| Model | GR2-6.7A-A |
| Model | Height(mm) ±1.5 | Width (mm) | Weight (kg) | Mounting Options | Thru Hole (mm) | Thread (mm) | C'sink (°) |
|---|---|---|---|---|---|---|---|
| GR2-12A-A | 16 | 20 | 0.06 | A,B,C,D,E,S | ∅3.3 | M3*0.5 | 90 |
| GR2-9.3A-A | 19 | 21 | 0.06 | Same as above | |||
| GR2-6.7A-A | 23 | 24 | 0.07 | Same as above | |||
| GR2-4.9A-A | 27 | 27 | 0.07 | Same as above | |||
| No. | Model | Max Static Load (mm) | Max Deflection (mm) | Kv(Vibration) (KN/m) | Ks(Shock) (KN/m) |
|---|---|---|---|---|---|
| 1 | GR2-12A-A | 12 | 5.8 | 11 | 6.1 |
| 2 | GR2-9.3A-A | 9.3 | 8.4 | 8.8 | 4.0 |
| 3 | GR2-6.7A-A | 6.7 | 11.7 | 5.3 | 1.9 |
| 4 | GR2-4.9A-A | 4.9 | 15.7 | 3.5 | 1.2 |
| Applications | Typical Equipment | Protection From | Operational Advantages |
|---|---|---|---|
| Shipboard | Electronics, Computers, Machinery | Explosive blast, Inherent vibration, Storms | Long life, Maintenance-free, Temperature extremes, Corrosion resistance, All axes protection |
| Rough Terrain Vehicles | Instrumentation, Generators, Electronics | Rough terrain, Poor road conditions, Collision | Long life, Maintenance-free, Temperature extremes, Ozone, Radioactivity, UV Radiation |
| Shipping Containers | Optics, Instruments, Missiles, Electronics | Transit, Handling drop, Loading/Unloading | Long life, Maintenance-free, Exposure to moisture, Repeated use |
| Aircraft | Electronics, Computers | High-G maneuvering, Hard landings, Turbulent air | Temperature and altitude extremes, Lightweight |
| Industrial Equipment | Centrifuge, Dryers, Pumps | Unbalanced dynamic loads, Fluid hammer, Inherent vibration, Foundation weakness | Long life, Maintenance-free, Corrosive environments |
