Name: JMZ-T1-2.0 Spring Isolator with 1 Year Warranty for Industrial and Commercial Applications and High Shock Absorption
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JMZ-T1-2.0
Availability: InStock

집 > 상품 > 스프링 격리기 >

JMZ-T1-2.0 Spring Isolator with 1 Year Warranty for Industrial and Commercial Applications and High Shock Absorption

1 Year Warranty Spring Isolator

Industrial and Commercial Application Vibration Isolator

High Shock Absorption Friction Damping Isolator

원래 장소:

중국

브랜드 이름:

Hoan

모델 번호:

JMZ-T1-2.0

저희와 연락

인용 을 요청 하십시오

JMZ-T1-2.0 Spring Isolator with 1 Year Warranty for Industrial and Commercial Applications and High Shock Absorption

제품 세부 정보

호환성:

대부분의 표준 장비에 적합합니다

디자인 스타일:

산업

애플리케이션:

산업 및 상업

핵심 구성 요소:

베어링

유지:

유지 보수가 적습니다

장착 유형:

나사 인

충격 흡수:

높은

소음 감소:

예

특징:

설치하도록 오래가고 쉽습니다

보증:

1 년

색상:

은

유효성:

널리 사용 가능합니다

강조하다:

1 Year Warranty Spring Isolator

Industrial and Commercial Application Vibration Isolator

High Shock Absorption Friction Damping Isolator

지불 및 배송 조건

최소 주문 수량

지불 조건

L/C, D/A, D/P, T/T, Western Union, MoneyGram

JMZ-T1-1.4 32mm Overall Width Spring Isolator with 1 Year Warranty and High Resilience for Industrial Vibration Isolation

가장 좋은 가격 을 구하라

JMZ-T1-1.2 Spring Isolator with 95% Isolation Efficiency 32mm Overall Width and UL Listed for Vibration Isolation

가장 좋은 가격 을 구하라

JMZ-T1-0.6 Spring Isolator with High Resilience and Strong Shock Resistance for Durable Vibration Control

가장 좋은 가격 을 구하라

JMZ-T1-0.45 Friction Damping Vibration Isolator with Up to 95% Isolation Efficiency for 0-150°F Operating Temperature and 1 Year Warranty

가장 좋은 가격 을 구하라

저희와 연락

86-29-88292913

지금 연락하세요

제품 설명

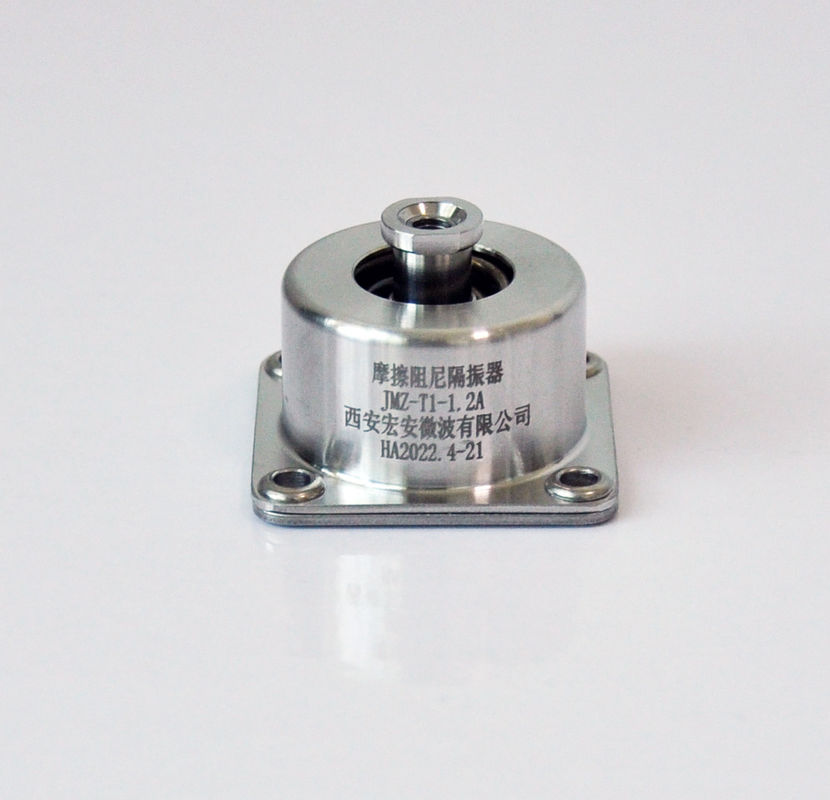

JMZ-T1-2.0 The Ultimate Solution for Equipment Stability and Performance with Spring Isolator

JMZ-T1 Series

Redefining Stability Boundaries: The JMZ-T Series transforms equipment performance foundations into strategic advantages by addressing the critical relationship between installation stability and ultimate accuracy.

In precision engineering, vibration acts as a "precision assassin" originating from both external sources (ground fluctuations, human movement) and internal equipment components. The JMZ-T Series friction damping vibration isolators from Xi'an Hoan Microwave Co., Ltd. go beyond traditional vibration reduction to redefine equipment stability boundaries, converting basic vibration isolation into a core strategic performance advantage.

Unlike traditional solutions (rubber pads or ordinary springs) that may trigger resonance or cause prolonged oscillation, the JMZ-T Series implements proactive "energy management" through:

Innovative multi-stage friction damping mechanism
Precisely controlled internal friction pairs
Efficient conversion of mechanical energy to thermal energy
Rapid stabilization for improved performance

This technology delivers measurable benefits for precision measuring instruments (faster reading stabilization, higher data repeatability) and high-end manufacturing equipment (superior processing consistency, lower scrap rates).

The JMZ-T Series represents a paradigm shift - not just a component, but a "performance amplifier" that unlocks equipment design potential by creating an ideal static working platform.

Structural Dimension Diagram

Technical Parameters

Model	Max PZ-Direction Load	PZ Displacement Under Max Load	H (mm)	h (mm)	d (mm)	Weight (g)	Shock Test	Resonance Frequency (Hz)	Operating Temp Range (℃)
JMZ-T1-0.3	0.3	≤0.6	19.5±0.5	16	M4-7H/ M3-7H	≤58	30g,11ms	＜30	-65～+120
JMZ-T1-0.45	0.45
JMZ-T1-0.6	0.6
JMZ-T1-1.2	1.2		22±0.5	17.5
JMZ-T1-1.4	1.4
JMZ-T1-2.0	2.0

Vibration Curve of JMZ-T1 Series

Impact Curve of JMZ-T1 Series
