원래 장소:
중국
브랜드 이름:
Hoan
모델 번호:
JMZ-TK-6A

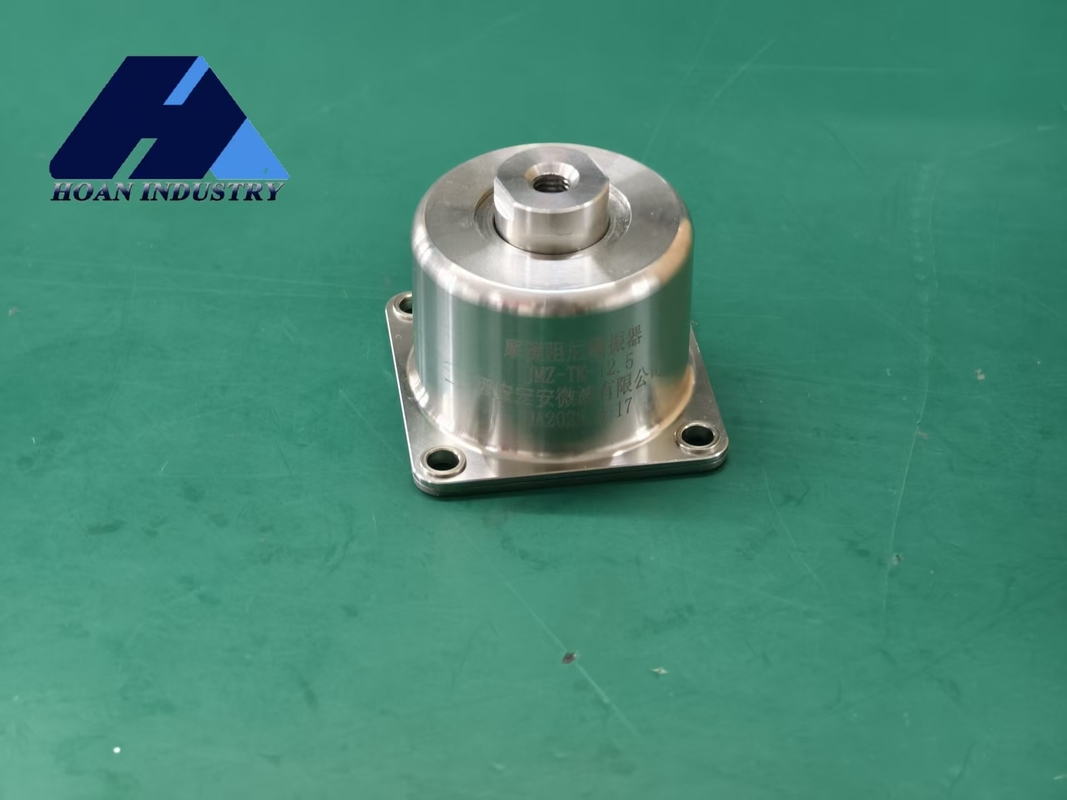

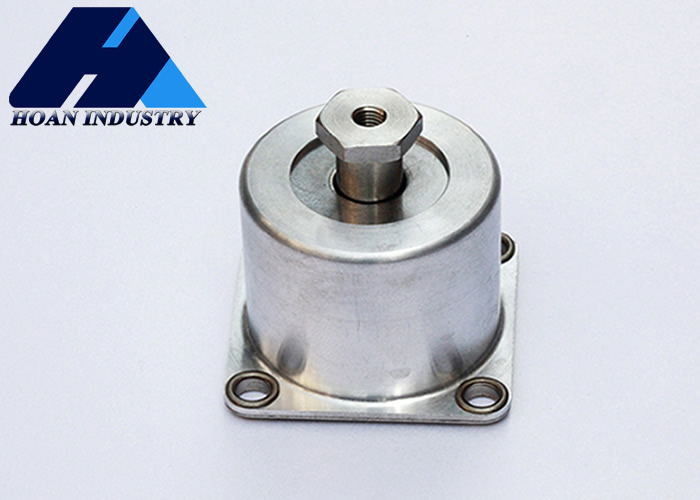

Engineered to withstand severe real-world conditions, JMZ-TK series friction damping vibration isolators maintain stable operation in challenging environments including humidity, salt spray, extreme temperatures, and dust. Designed with reliability as the core principle by Xi'an Hoan Microwave Co., Ltd.
Xi'an Hoan's comprehensive quality management system ensures strict control from raw materials to finished products. Precision tooling and equipment handle critical processes including:
Guaranteeing every JMZ-TK vibration isolator delivers consistent, reliable performance.
| Model | B | M | d | A | C | ∅1 | ∅2 | H1 | H2 |
|---|---|---|---|---|---|---|---|---|---|
| JMZ-TK-2.5A～8A | 46 | 6 | 4.1 | 58 | 20 | 55 | 22 | 36 | 3.6 |
| JMZ-TK1-25A/40A/50A | 63 | 12 | 8.2 | 78 | 20 | 70 | 22 | 56 | 6 |
| Model | Nominal Load (N) | Load Range (N) | Natural Frequency fn≤(Hz) | Loading Working Height H0±1(mm) | Limit Displacement | Maximum Vibration Transmissibility ηv≤ | Impact Resistance Test | Service Life (year) | ||
|---|---|---|---|---|---|---|---|---|---|---|
| up(δ1) | down(δ2) | horizontal (δ3) | ||||||||
| JMZ-TK-2.5A | 25 | 20～30 | 33 | 42 | 4 | 4 | 4 | 3 | 100g | 10 |
| JMZ-TK-4A | 40 | 30～50 | 33 | 42 | 4 | 4 | 4 | 3 | 100g | 10 |
| JMZ-TK-5A | 50 | 40～60 | 33 | 42 | 4 | 4 | 4 | 3 | 100g | 10 |
| JMZ-TK-6A | 60 | 50～70 | 33 | 42 | 4 | 4 | 4 | 3 | 100g | 10 |
| JMZ-TK-7A | 70 | 60～80 | 33 | 42 | 4 | 4 | 4 | 3 | 100g | 10 |
| JMZ-TK-8A | 80 | 70～90 | 33 | 42 | 4 | 4 | 4 | 3 | 100g | 10 |
| JMZ-TK1-25A | 250 | 200～300 | 20 | 70 | 7 | 8 | 7 | 3 | 60g | 10 |
| JMZ-TK1-40A | 400 | 300～480 | 20 | 70 | 7 | 8 | 7 | 3 | 60g | 10 |
| JMZ-TK1-50A | 500 | 400～600 | 20 | 70 | 7 | 8 | 7 | 3 | 60g | 10 |
