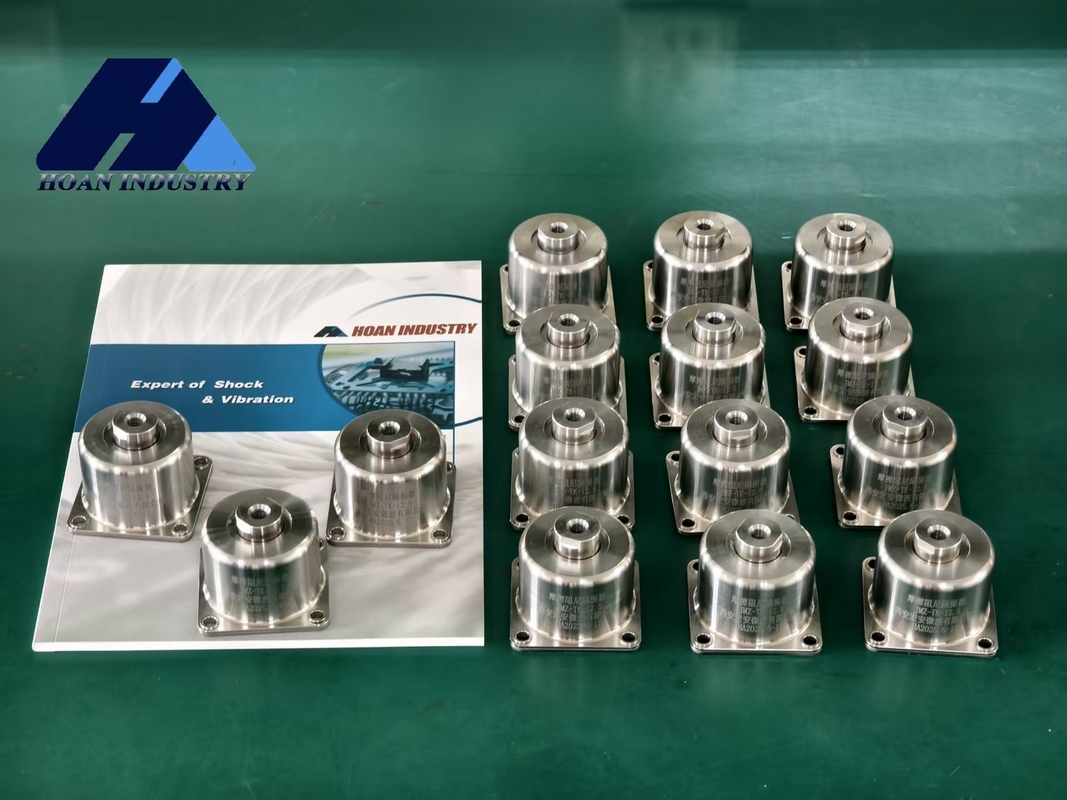

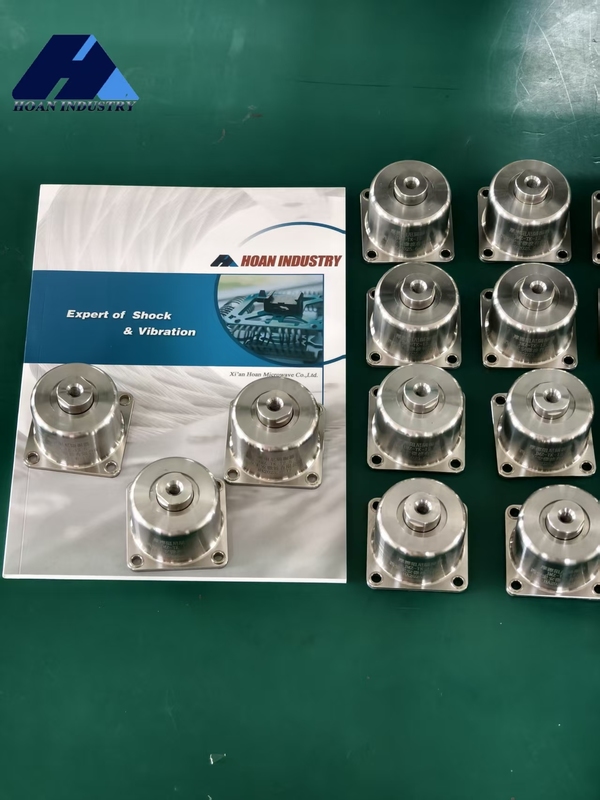

Name: JMZ-TK-7A Corrosion Resistant Friction Damping Isolator with Up to 95% Isolation Efficiency for Vibration Isolation in Energy & Mining
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JMZ-TK-7A
Availability: InStock

집 > 상품 > 스프링 격리기 >

JMZ-TK-7A Corrosion Resistant Friction Damping Isolator with Up to 95% Isolation Efficiency for Vibration Isolation in Energy & Mining

Corrosion Resistant Friction Damping Isolator

Up to 95% Isolation Efficiency Spring Isolator

Operating Temperature -40°F to 200°F Vibration Isolator

원래 장소:

중국

브랜드 이름:

Hoan

모델 번호:

JMZ-TK-7A

저희와 연락

인용 을 요청 하십시오

JMZ-TK-7A Corrosion Resistant Friction Damping Isolator with Up to 95% Isolation Efficiency for Vibration Isolation in Energy & Mining

제품 세부 정보

부식 저항:

예

디자인 스타일:

산업

애플리케이션:

진동 분리

해당 산업:

에너지 및 광업

제품 키워드:

마찰 절연 장치

포트:

xi'an 또는 지정되었습니다

작동 온도:

-40 ° F ~ 200 ° F

사용자 정의:

요청시 제공됩니다

충격 흡수:

높은

분리 효율:

최고 95%

제품 부하 용량:

사용자 정의 가능

건설:

브레이드 와이어 로프

구조:

헬리컬

강조하다:

Corrosion Resistant Friction Damping Isolator

Up to 95% Isolation Efficiency Spring Isolator

Operating Temperature -40°F to 200°F Vibration Isolator

지불 및 배송 조건

최소 주문 수량

지불 조건

L/C, D/A, D/P, Western Union, T/T, MoneyGram

JMZ-TK1-50A Helical Structure Spring Steel Friction Damping Vibration Isolator with Vertical Mounting Orientation

가장 좋은 가격 을 구하라

JMZ-TK1-40A Customizable Cylindrical Friction Damping Vibration Isolator with Mounting Installation for Energy & Mining

가장 좋은 가격 을 구하라

JMZ-TK-8A Customized Solutions Stainless Steel Spring Isolator with Excellent Shock Absorption and Easy Installation

가장 좋은 가격 을 구하라

JMZ-TK-7A Corrosion Resistant Friction Damping Isolator with Up to 95% Isolation Efficiency for Vibration Isolation in Energy & Mining

가장 좋은 가격 을 구하라

저희와 연락

86-29-88292913

지금 연락하세요

제품 설명

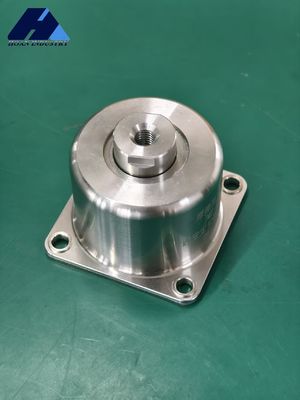

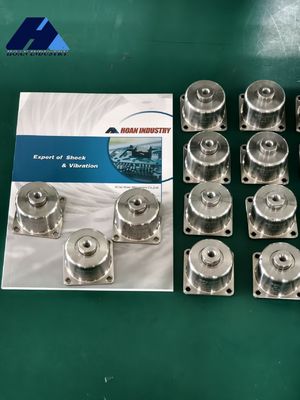

JMZ-TK-7A Friction Damping Isolators

Ensuring Material-Level Reliability in Real-World Conditions

JMZ-TK Vibration Isolators

The invisible contributor to enhancing industrial equipment precision and service life. In modern manufacturing, processing precision, production efficiency, and equipment service life are core indicators of competitiveness. The JMZ-TK series friction damping vibration isolators from Xi'an Hoan effectively address vibration-related challenges that impact equipment performance.

Core Benefits

Enhanced Processing and Measurement Precision: Quickly dampens internal vibrations from spindle rotation and feed system movement, as well as external vibrations transmitted through the foundation.
Extended Equipment Service Life: Reduces dynamic load on components by isolating and weakening vibration energy at the source, significantly extending precision retention period.

Applications

Ideal for high-precision CNC machine tools, coordinate measuring machines (CMMs), lithography machines, and other equipment requiring vibration isolation.

Installation

Simple installation between equipment and foundation with compact design that maintains original equipment layout.

Structural Dimension Diagram

Installation Dimensions (mm)

Model	B	M	d	A	C	∅1	∅2	H1	H2
JMZ-TK-2.5A～8A	46	6	4.1	58	20	55	22	36	3.6
JMZ-TK1-25A/40A/50A	63	12	8.2	78	20	70	22	56	6

Technical Parameters

Model	Nominal Load (N)	Load Range (N)	Natural Frequency fn≤(Hz)	Loading Working Height H0±1(mm)	Limit Displacement	Maximum Vibration Transmissibility ηv≤	Impact Resistance Test	Service Life (year)
JMZ-TK-2.5A	25	20～30	33	42	4	3	100g	10
JMZ-TK-4A	40	30～50	33	42	4	3	100g	10
JMZ-TK-5A	50	40～60
JMZ-TK-6A	60	50～70
JMZ-TK-7A	70	60～80

Investing in JMZ-TK vibration isolators yields significant long-term returns by improving product yield, reducing waste, lowering maintenance frequency, and extending equipment lifecycle.
