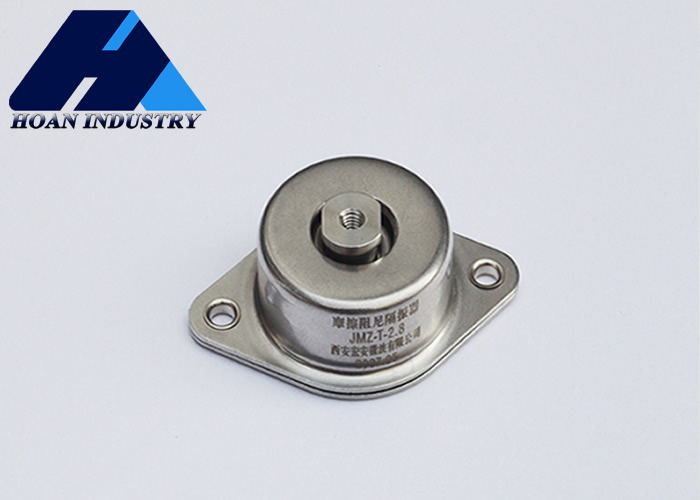

Name: JMZ-T-2.6 Friction Damping Vibration Isolator with Composite Friction Materials 60mm Overall Width and 1 Year Warranty
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JMZ-T-2.6
Availability: InStock

집 > 상품 > 스프링 격리기 >

JMZ-T-2.6 Friction Damping Vibration Isolator with Composite Friction Materials 60mm Overall Width and 1 Year Warranty

Composite Friction Materials Vibration Isolator

60mm Overall Width Spring Isolator

1 Year Warranty Friction Damping Vibration Isolator

원래 장소:

중국

브랜드 이름:

Hoan

모델 번호:

JMZ-T-2.6

저희와 연락

인용 을 요청 하십시오

JMZ-T-2.6 Friction Damping Vibration Isolator with Composite Friction Materials 60mm Overall Width and 1 Year Warranty

제품 세부 정보

유효성:

널리 사용 가능합니다

product_name:

스프링 격리기

전체 너비:

60mm

설치 방법:

장착 또는 내장

장착 유형:

어미판

구조:

헬리컬

유지:

유지 보수가 적습니다

충격 저항:

강한

유형:

진동 분리기

보증 서비스 후:

온라인 지원

기계 테스트 보고서:

사용할 수 없습니다

보증:

1 년

디자인 스타일:

산업

자격증:

UL 등재, RoHS 준수

응용 프로그램:

산업용 엔진 마운트

강조하다:

Composite Friction Materials Vibration Isolator

60mm Overall Width Spring Isolator

1 Year Warranty Friction Damping Vibration Isolator

지불 및 배송 조건

최소 주문 수량

지불 조건

MoneyGram, Western Union, T/T, D/P, D/A, L/C.

86-29-88292913

지금 연락하세요

제품 설명

JMZ-T-2.6 Friction Damping Vibration Isolators

Superior Performance with Composite Friction Materials and Stable Damping Force

JMZ-T Series Overview

Independently developed by Xi'an Hoan Microwave Co., Ltd., the JMZ-T Series Friction Damping Vibration Isolators integrate innovative technologies for exceptional vibration control performance.

Key Technical Advantages

Advanced Friction Damping Mechanism: Provides stable damping force unaffected by temperature changes with zero maintenance requirements
Composite Friction Materials: Specially processed materials ensure high friction coefficient with smooth force variation for optimal response to both micro-vibrations and large shocks
Hybrid Structural Design: Combines metal spring load capacity with friction component energy dissipation for independent stiffness and damping adjustment
3D Vibration Isolation: Effective vibration control in all directions for comprehensive protection
Rigorous Quality Control: Comprehensive testing ensures compliance with highest industry standards

Technical Specifications

Model	Pz-Direction Load (kg)	Displacement Under Maximum Load (mm)	d	Weight (g)	Vibration test	Shock test	Resonance frequency (Hz)	Operating temperature range (℃)
JMZ-T-1.4	1.4	≤0.6	ST4*0.7/ M7-7H	≤58	＜4	30g,11ms	＜30	-65～+120
JMZ-T-2.6	2.6	See JMZ-T-1.4 for other specifications
JMZ-T-2.8	2.8	See JMZ-T-1.4 for other specifications
