원래 장소:
중국
브랜드 이름:
Hoan
모델 번호:
JMZ-T1-0.6

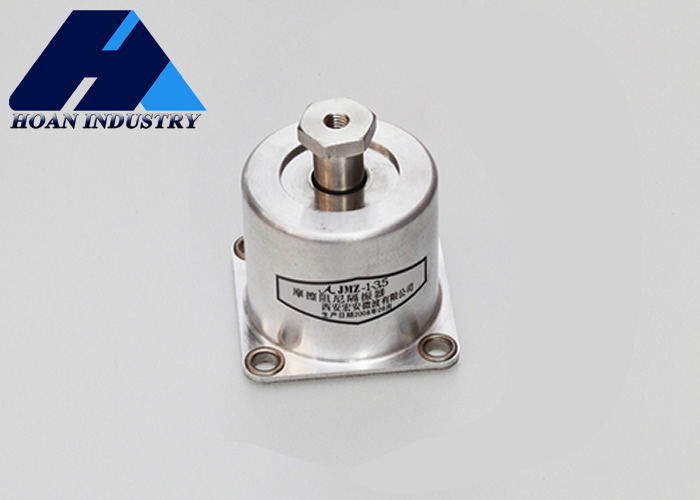

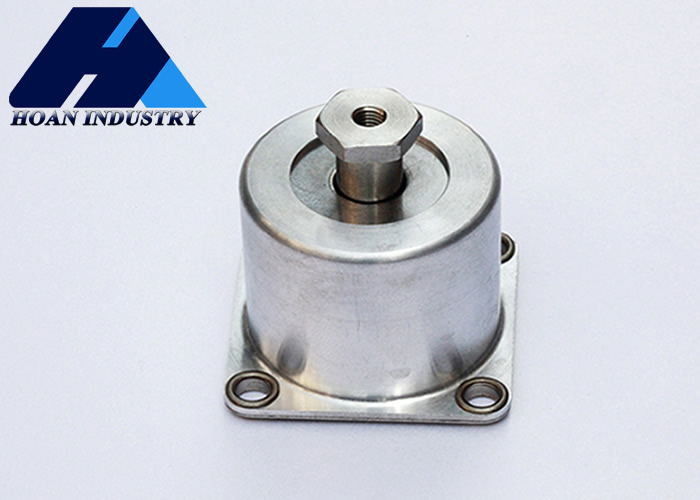

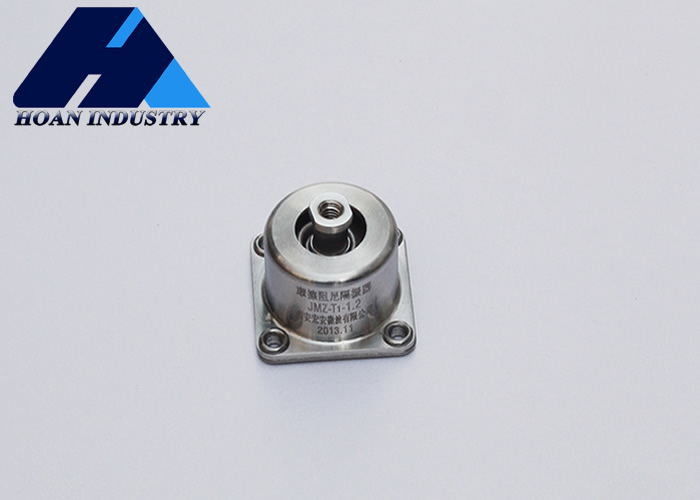

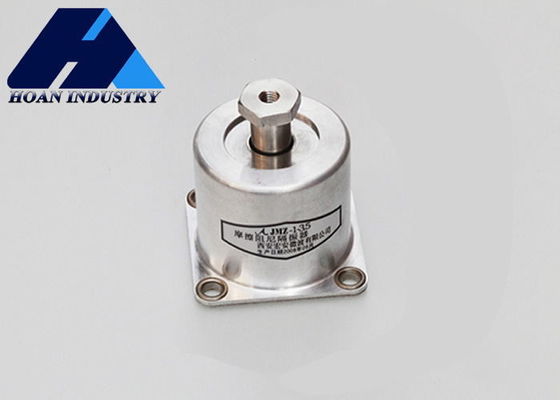

In laboratories for electron microscopes, lithography machines, or biochips, the slightest vibration is unacceptable noise. The JMZ-T Series is specifically designed for these cutting-edge fields with "zero tolerance for vibration". Its secret lies in an extremely low natural frequency paired with precisely calculated friction damping, which effectively isolates wide-band vibrations ranging from ground vibrations to environmental disturbances.
The T Series uses high-stability internal materials, avoiding issues like creep and temperature sensitivity that may occur with traditional viscous fluids. This ensures long-term dimensional stability and consistent performance. Choosing the JMZ-T Series means providing your ultra-precision equipment with a truly "silent" foundation—making observations clearer, processing more precise, and data more reliable.
| Model | Maximum PZ-Direction Load | PZ Displacement Under Maximum Load | H (mm) | h (mm) | d (mm) | Weight (g) | Shock Test | Resonance Frequency (Hz) | Operating Temperature Range (℃) |
|---|---|---|---|---|---|---|---|---|---|
| JMZ-T1-0.3 | 0.3 | ≤0.6 | 19.5±0.5 | 16 | M4-7H/ M3-7H | ≤58 | 30g,11ms | ＜30 | -65～+120 |
| JMZ-T1-0.45 | 0.45 | ||||||||
| JMZ-T1-0.6 | 0.6 | ||||||||
| JMZ-T1-1.2 | 1.2 | 22±0.5 | 17.5 | ||||||
| JMZ-T1-1.4 | 1.4 | ||||||||
| JMZ-T1-2.0 | 2.0 |
