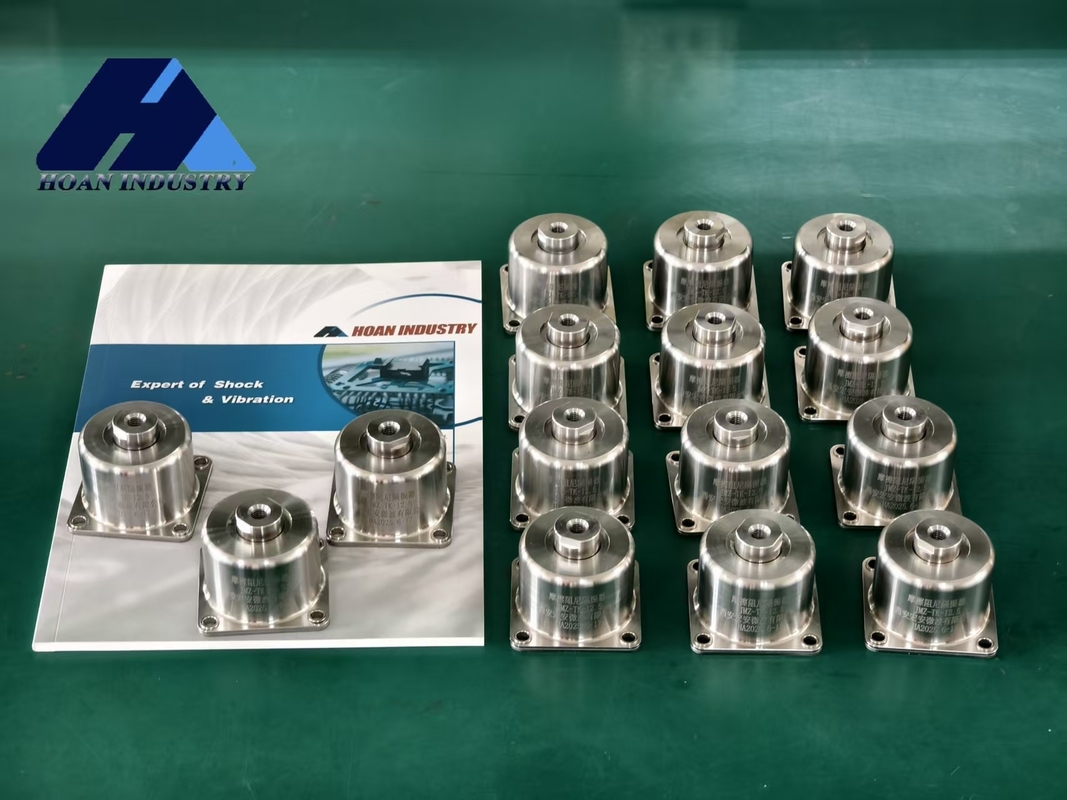

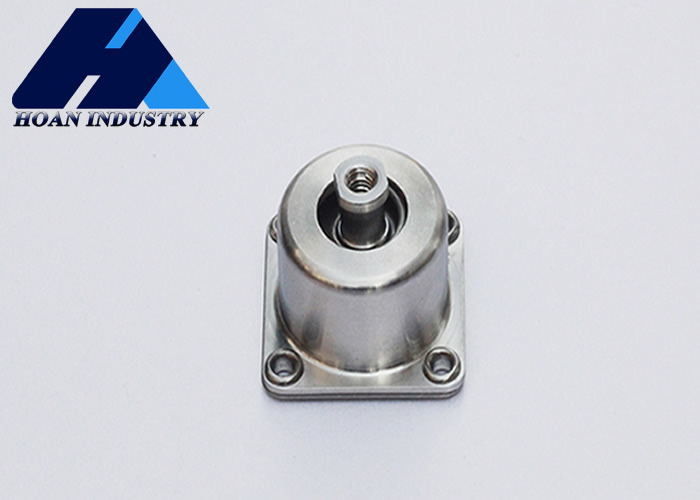

Name: JMZ-TK-5A JMZ-TK Series Combining Rigidity and Flexibility for Optimal Vibration Isolation in High-Frequency and Impact Situations
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JMZ-TK-5A
Availability: InStock

집 > 상품 > 스프링 격리기 >

JMZ-TK-5A JMZ-TK Series Combining Rigidity and Flexibility for Optimal Vibration Isolation in High-Frequency and Impact Situations

Combining Rigidity and Flexibility Spring Isolator

Impact Resistance Vibration Isolator

Customizable Friction Damping Isolator

원래 장소:

중국

브랜드 이름:

Hoan

모델 번호:

JMZ-TK-5A

저희와 연락

인용 을 요청 하십시오

JMZ-TK-5A JMZ-TK Series Combining Rigidity and Flexibility for Optimal Vibration Isolation in High-Frequency and Impact Situations

제품 세부 정보

작동 온도 범위:

-40 ° C ~ 120 ° C

재료:

봄

애플리케이션:

진동 및 소음 제어

해당 산업:

건축 자재 상점, 에너지 및 광업

내구성:

오래 지속됩니다

회복력:

높은

색상:

은

특징:

높은 부하 용량, 탁월한 진동 및 소음 차단

쇼룸 위치:

없음

보증 서비스 후:

온라인 지원

분리 효율:

최고 95%

유효성:

널리 사용 가능합니다

사용자 정의:

요청시 제공됩니다

핵심 구성 요소:

베어링

강조하다:

Combining Rigidity and Flexibility Spring Isolator

Impact Resistance Vibration Isolator

Customizable Friction Damping Isolator

지불 및 배송 조건

최소 주문 수량

지불 조건

L/C, D/A, D/P, T/T, Western Union, MoneyGram

JMZ-TK1-50A Helical Structure Spring Steel Friction Damping Vibration Isolator with Vertical Mounting Orientation

가장 좋은 가격 을 구하라

JMZ-TK1-40A Customizable Cylindrical Friction Damping Vibration Isolator with Mounting Installation for Energy & Mining

가장 좋은 가격 을 구하라

JMZ-TK-8A Customized Solutions Stainless Steel Spring Isolator with Excellent Shock Absorption and Easy Installation

가장 좋은 가격 을 구하라

JMZ-TK-7A Corrosion Resistant Friction Damping Isolator with Up to 95% Isolation Efficiency for Vibration Isolation in Energy & Mining

가장 좋은 가격 을 구하라

저희와 연락

86-29-88292913

지금 연락하세요

제품 설명

JMZ-TK-5A JMZ-TK Series Vibration Isolators

Combining Rigidity and Flexibility for Optimal Vibration Isolation in High-Frequency and Impact Situations

JMZ-TK Series: Revolutionary Friction Damping Technology

The JMZ-TK series from Xi'an Hoan Microwave Co., Ltd. represents a significant advancement in vibration isolation technology, overcoming the limitations of traditional solutions like spring isolators, rubber isolators, and air springs.

Key Performance Advantages

Nearly Ideal Full-Frequency Protection: Combines high-elasticity components with friction damping mechanism for effective vibration isolation across all frequencies
Outstanding Environmental Adaptability: Maintains stable performance in extreme temperatures from -40°C to +80°C
Long Service Life: Features proprietary wear-resistant materials and simple, reliable design for maintenance-free operation

Structural Dimensions

Model	Installation dimensions (mm)	Overall dimensions (mm)
JMZ-TK-2.5A～8A	B: 46, M: 6, d: 4.1, A: 58, C: 20	∅1: 55, ∅2: 22, H1: 36, H2: 3.6
JMZ-TK1-25A/40A/50A	B: 63, M: 12, d: 8.2, A: 78, C: 20	∅1: 70, ∅2: 22, H1: 56, H2: 6

Technical Parameters

Model	Nominal Load (N)	Load Range (N)	Natural Frequency fn≤(Hz)	Loading Working Height H0±1(mm)	Max Vibration Transmissibility ηv≤	Impact Resistance	Service Life (year)
JMZ-TK-2.5A	25	20～30	33	42	3	100g	10
JMZ-TK-4A	40	30～50
JMZ-TK-5A	50	40～60
JMZ-TK-6A	60	50～70
JMZ-TK-7A	70	60～80
JMZ-TK1-25A	250	200～300

The JMZ-TK series represents Xi'an Hoan's technological innovation in vibration isolation, providing superior stability for demanding industrial applications.
