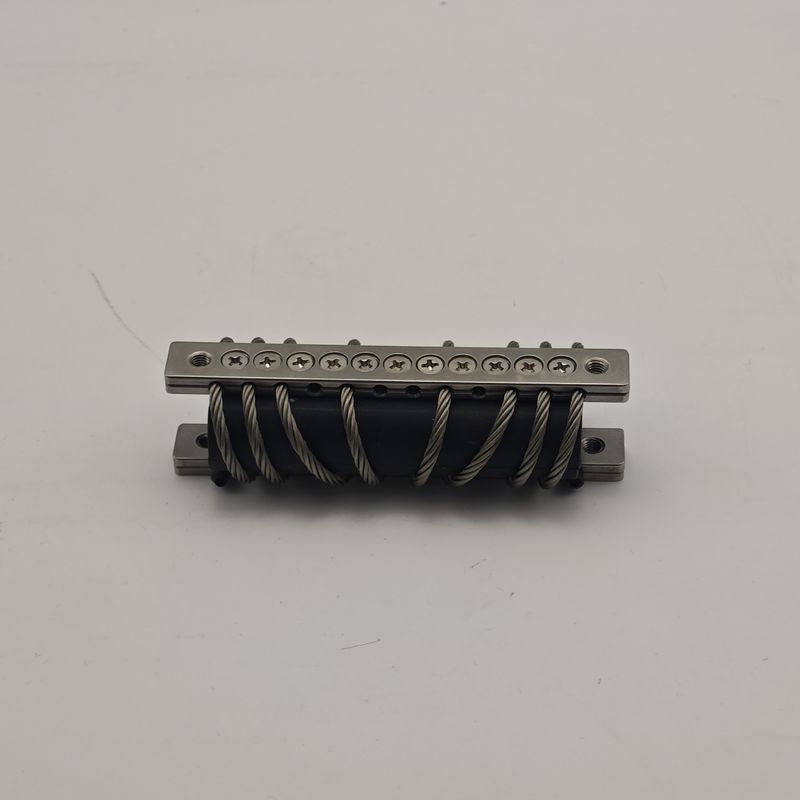

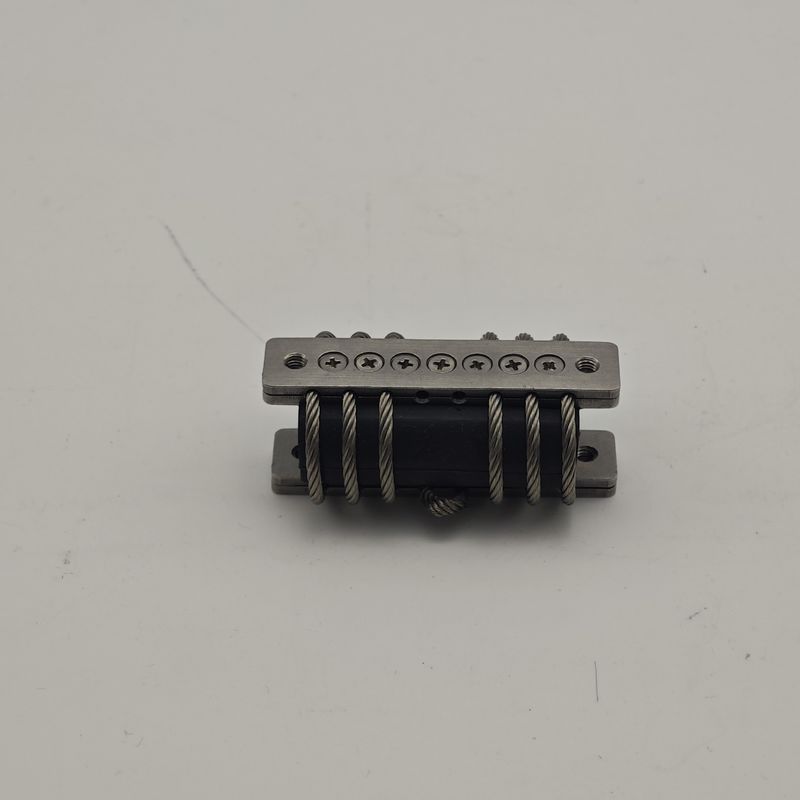

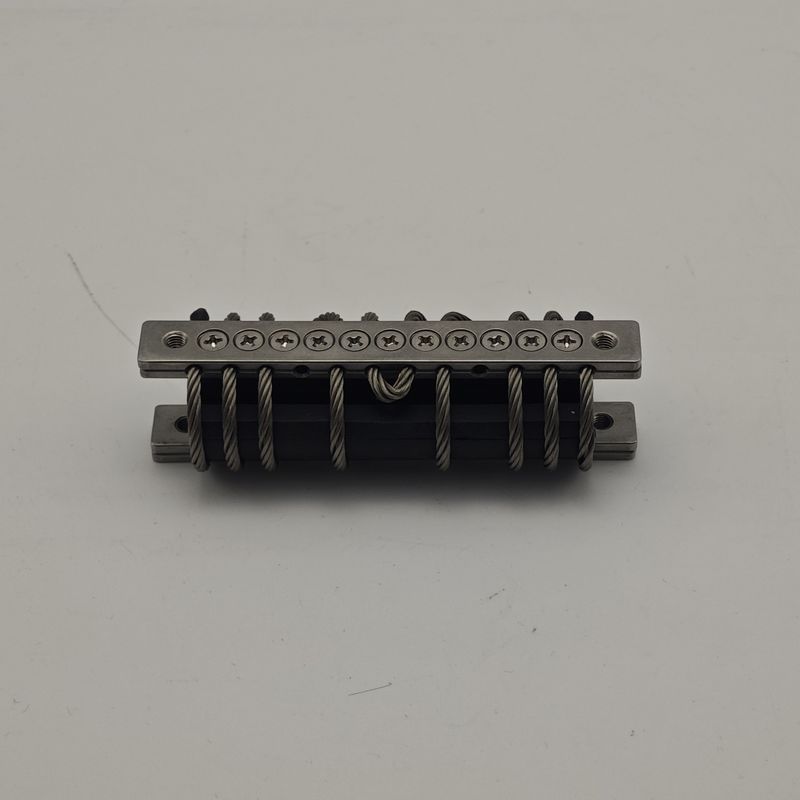

Name: Customized Wire Rope Vibration Isolator for Quiet Operation Stable Equipment Performance with Excellent Damping GX-20AN
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: GX-20A(N)
Availability: InStock

집 > 상품 > 맞춤형 제품 >

Customized Wire Rope Vibration Isolator for Quiet Operation Stable Equipment Performance with Excellent Damping GX-20AN

Quiet Operation Wire Rope Vibration Isolator

Stable Equipment Performance Vibration Isolator

Excellent Damping Performance Shock Absorber

원래 장소:

중국

브랜드 이름:

Hoan

모델 번호:

GX-20A(N)

저희와 연락

인용 을 요청 하십시오

Customized Wire Rope Vibration Isolator for Quiet Operation Stable Equipment Performance with Excellent Damping GX-20AN

제품 세부 정보

재료:

다양한 재료 사용 가능

서비스 온도:

1000 ℃ -1800 ℃

맞춤형:

예

인쇄:

예

모양:

맞춤형, 비맞춤형

열 충격 저항:

좋은 열충격 저항

크기:

맞춤형

화학적 안정성:

화학적 안정성이 매우 높습니다.

용법:

각종 식품, 선물, 문구류

마케팅:

유럽 및 미국 시장

판매 후 서비스:

맞춤형

예어:

불탄소 물질

두께:

0.15mm

결제 방법:

맞춤형

강조하다:

Quiet Operation Wire Rope Vibration Isolator

Stable Equipment Performance Vibration Isolator

Excellent Damping Performance Shock Absorber

지불 및 배송 조건

최소 주문 수량

지불 조건

MoneyGram, Western Union, T/T, D/P, D/A, L/C.

GX-50A(N) Customized Wire Rope Vibration Isolator with High Fatigue Strength and Thermal Shock Resistance for Long-lasting Durability

가장 좋은 가격 을 구하라

Customized GX-40AN Wire Rope Vibration Isolator with 113mm*40mm Size 32.5±mm Thickness and 1000℃-1800℃ Service Temperature

가장 좋은 가격 을 구하라

GX-30AN Wire Rope Vibration Isolator with Exceptional Environmental Adaptability, Corrosion Resistant and Good Thermal Shock Resistance

가장 좋은 가격 을 구하라

Customized Wire Rope Vibration Isolator for Quiet Operation Stable Equipment Performance with Excellent Damping GX-20AN

가장 좋은 가격 을 구하라

저희와 연락

86-29-88292913

지금 연락하세요

제품 설명

GX-N Series Wire Rope Vibration Isolators

Guardian of Quiet Operation - The Ideal Solution for Stable Equipment Performance

Persistent vibration is a hidden threat to precision equipment, causing loose screws, component wear, inaccurate measurements, and increased noise. Xi'an Hoan Microwave's GX-N Series wire rope vibration isolators effectively isolate harmful vibrations, ensuring quiet and stable equipment operation.

Key Features

Excellent damping performance through dry friction between wire rope strands
Dual-action vibration control: isolation through elastic deformation and energy dissipation via internal friction
Effective vibration isolation across wide frequency bands, especially medium and high frequencies
Significantly reduces operational vibration and structural noise in power equipment
Creates stable working platforms for electronic cabinets and precision instruments
Enhances equipment reliability and extends operational lifespan

Structural Dimension Diagram

Dimensions Table

Model	L(mm)	A±0.3	H±1.5	W±1.5	d
GX-10A(N)	55	49	21	26	M3-7H
GX-20A(N)	84	68	29	35	M5-7H
GX-30A(N)	113	97	32.5	40	M5-7H
GX-40A(N)	113	97	32.5	40	M5-7H
GX-50A(N)	113	97	33	40	M5-7H
GX-60A(N)	133	117	31	40	M5-7H

Performance Characteristics

Vibration Curve

Impact Curve

Technical Specifications

Technical Parameter	Specification
Nominal Load (Pz)	Downward Pressure
Resonance Magnification	≤4
High Vibrating Efficiency	≥95%
Working Temperature	-55°C to +120°C
Shock (Ks)	30g/6ms
Peak Response G	≤3.5km/s²
Vibration (Kv)	Complies with National Military Standard GJB150-16

The GX-N Series has become the trusted vibration isolation solution for numerous leading enterprises across industries, ensuring equipment operates efficiently in tranquility.
