원래 장소:
중국
브랜드 이름:
Hoan
모델 번호:
GX-40A ((N)

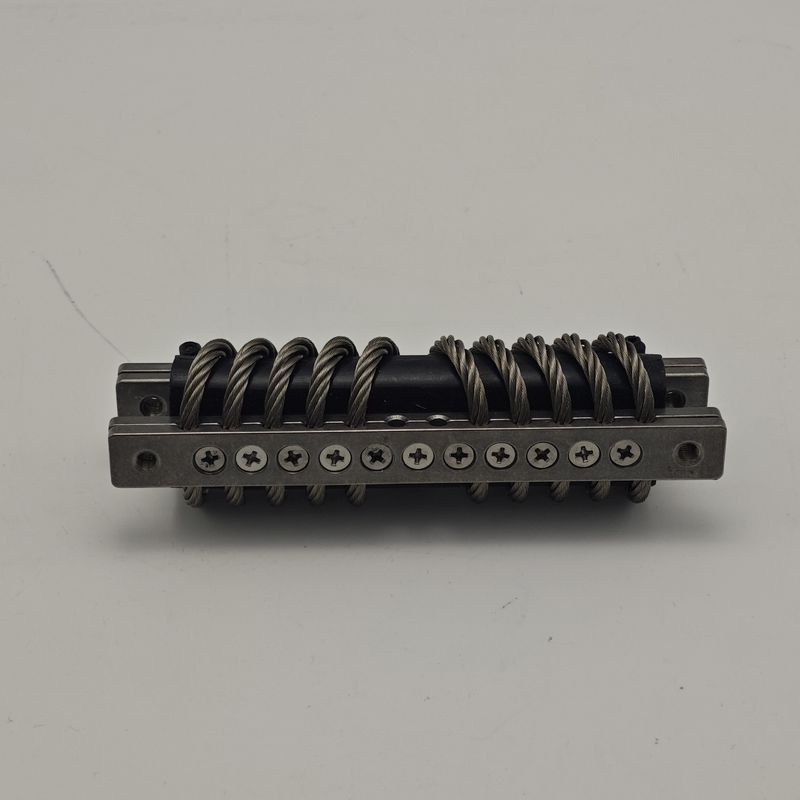

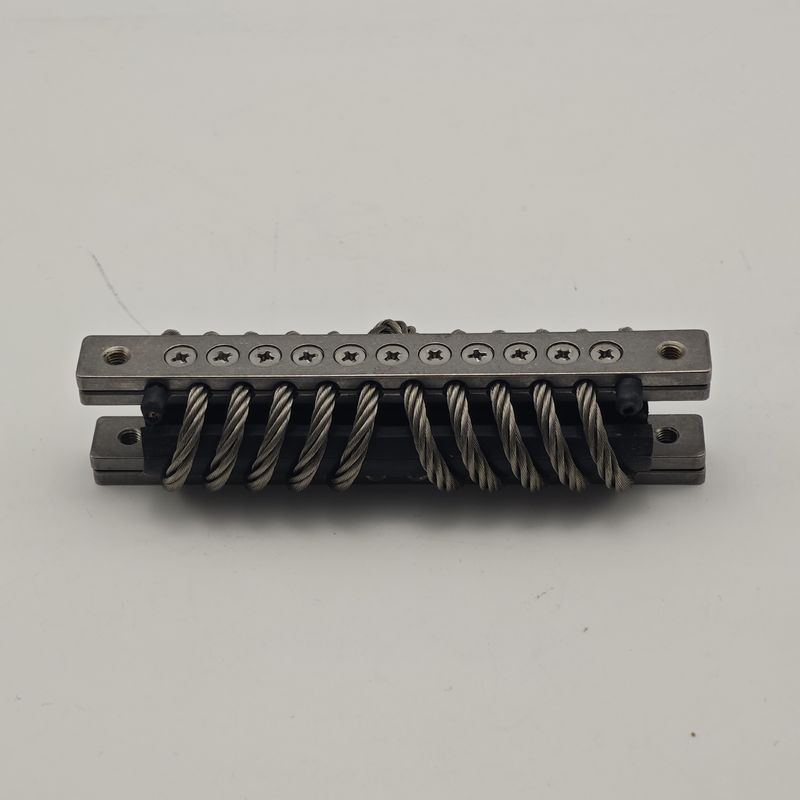

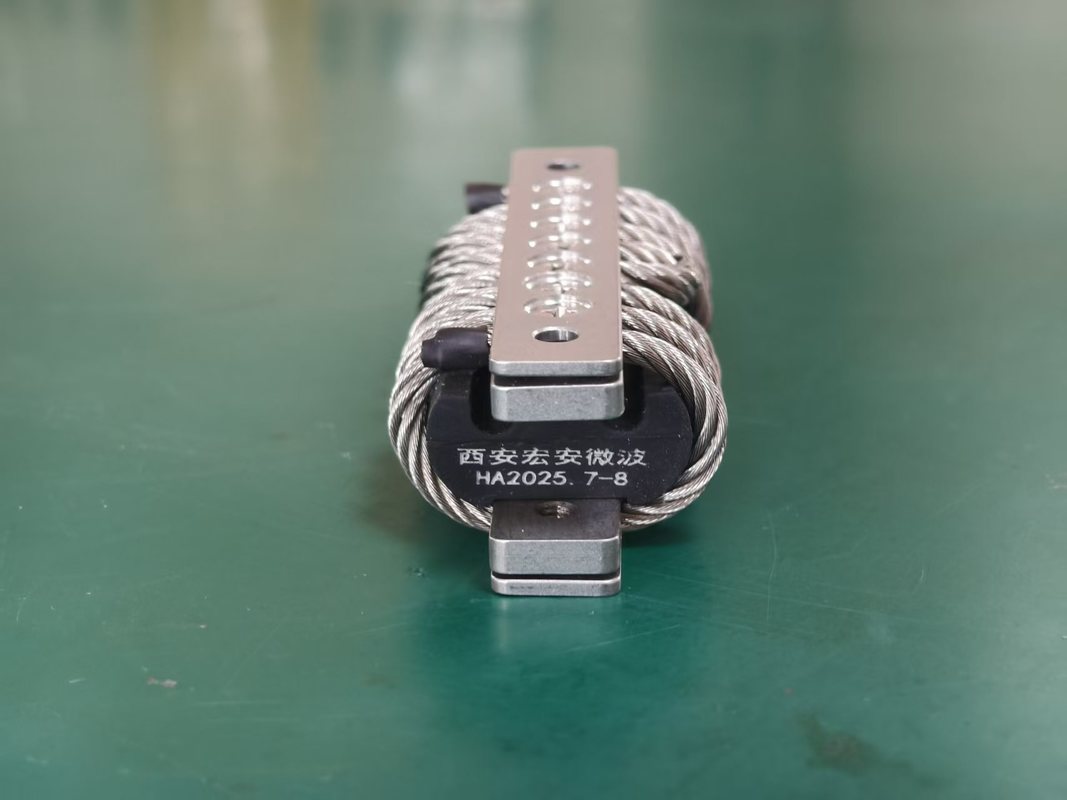

In aerospace, UAVs, and high-end vehicle-mounted electronics applications, weight optimization is critical. Xi'an Hoan Microwave's GX-N Series wire rope vibration isolators deliver excellent vibration isolation and impact resistance while meeting stringent lightweight requirements.
| Model | L(mm) | A±0.3 | H±1.5 | W±1.5 | d |
|---|---|---|---|---|---|
| GX-10A(N) | 55 | 49 | 21 | 26 | M3-7H |
| GX-20A(N) | 84 | 68 | 29 | 35 | M5-7H |
| GX-30A(N) | 113 | 97 | 32.5 | 40 | M5-7H |
| GX-40A(N) | 113 | 97 | 32.5 | 40 | M5-7H |
| GX-50A(N) | 113 | 97 | 33 | 40 | M5-7H |
| GX-60A(N) | 133 | 117 | 31 | 40 | M5-7H |
| Technical Parameter | GX-10A(N) | GX-20A(N) | GX-30A(N) | GX-40A(N) | GX-50A(N) | GX-60A(N) |
|---|---|---|---|---|---|---|
| Pz Nominal Load(N) | Downward Pressure | |||||
| Resonance Magnification | ≤4 | |||||
| High Vibrating Efficiency | ≥95% | |||||
| Working Temperature | -55°C to +120°C | |||||
| Shock(Ks) | 30g/6ms | |||||
| Peak Response G | ≤3.5km/s² | |||||
| Vibration (Kv) | Accord with National Military Standard GJB150-16 | |||||
