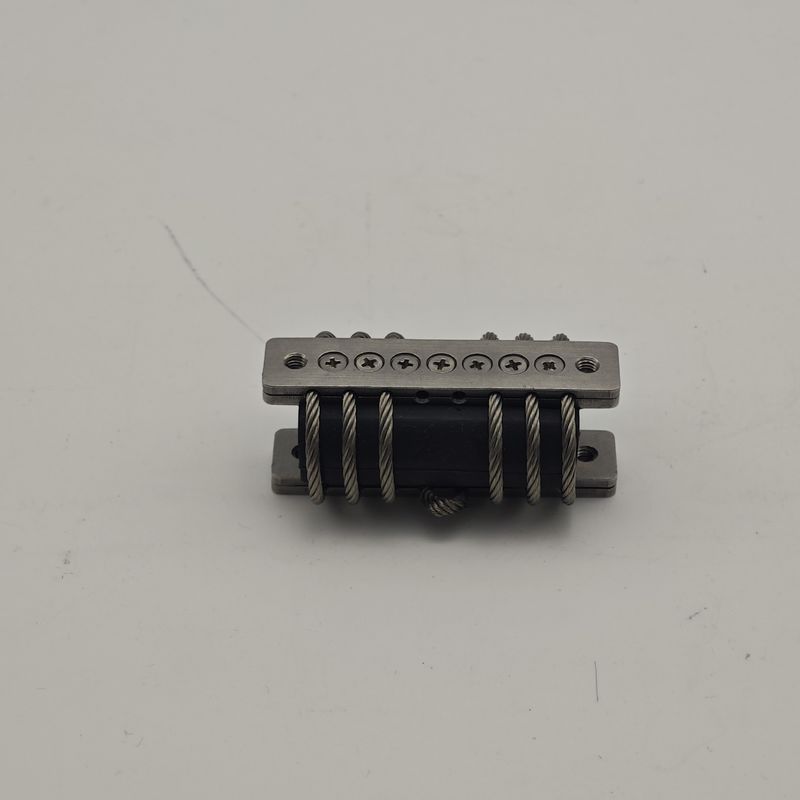

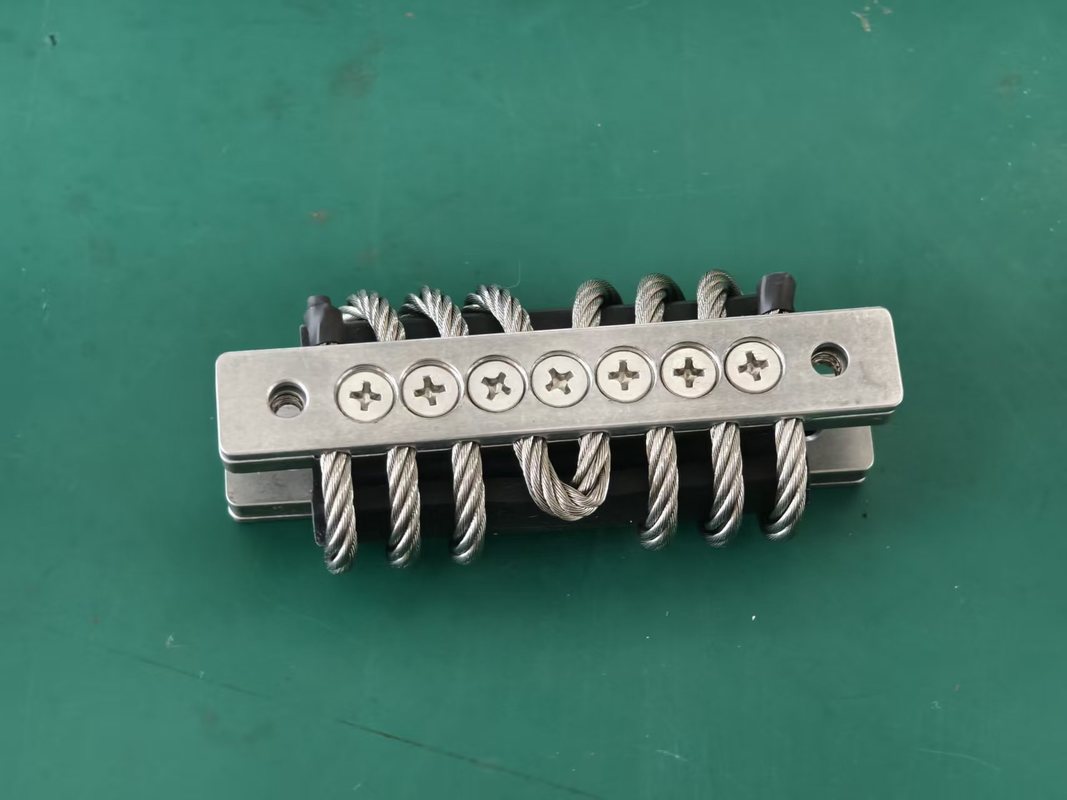

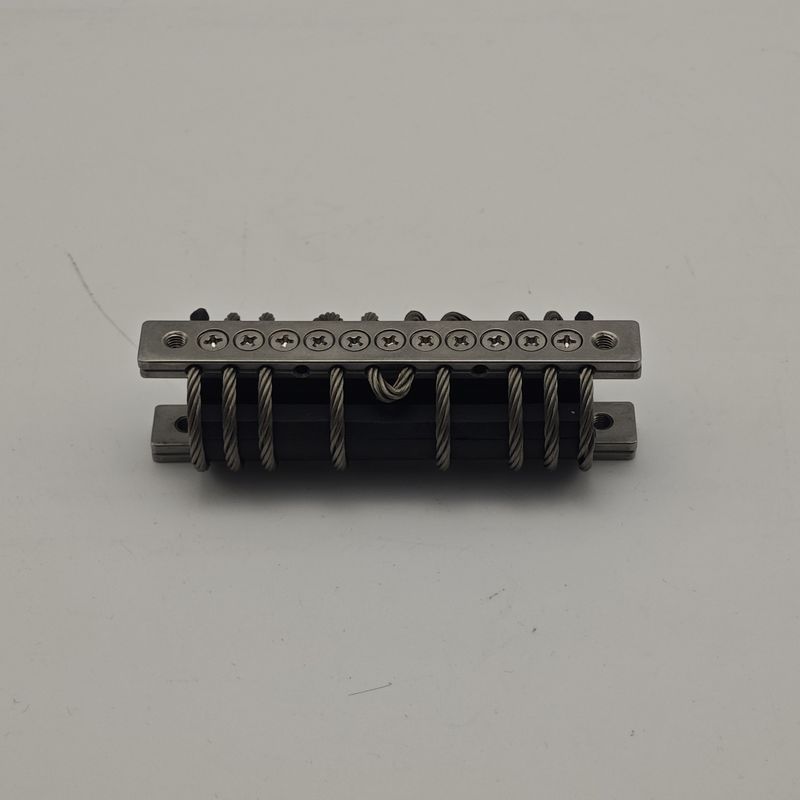

Name: GX-50A(N) Customized Wire Rope Vibration Isolator with High Fatigue Strength and Thermal Shock Resistance for Long-lasting Durability
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: GX-50A(N)
Availability: InStock

집 > 상품 > 맞춤형 제품 >

GX-50A(N) Customized Wire Rope Vibration Isolator with High Fatigue Strength and Thermal Shock Resistance for Long-lasting Durability

High Fatigue Strength Vibration Isolator

Thermal Shock Resistance Wire Rope Isolator

Long-lasting Durability Shock Absorber

원래 장소:

중국

브랜드 이름:

Hoan

모델 번호:

GX-50A(N)

저희와 연락

인용 을 요청 하십시오

GX-50A(N) Customized Wire Rope Vibration Isolator with High Fatigue Strength and Thermal Shock Resistance for Long-lasting Durability

제품 세부 정보

서비스 온도:

1000 ℃ -1800 ℃

열 충격 저항:

좋은 열충격 저항

두께:

33mm

배송 옵션:

맞춤형

맞춤형:

예

품질 관리:

맞춤형

지불 옵션:

맞춤형

고객 서비스:

사용 가능

화학적 안정성:

화학적 안정성이 매우 높습니다.

인쇄:

예

마케팅:

유럽 및 미국 시장

생산 시간:

맞춤형

크기:

맞춤형

강조하다:

High Fatigue Strength Vibration Isolator

Thermal Shock Resistance Wire Rope Isolator

Long-lasting Durability Shock Absorber

지불 및 배송 조건

최소 주문 수량

지불 조건

L/C,D/A,T/T,D/P,MoneyGram,웨스턴 유니온

GX-50A(N) Customized Wire Rope Vibration Isolator with High Fatigue Strength and Thermal Shock Resistance for Long-lasting Durability

가장 좋은 가격 을 구하라

Customized GX-40AN Wire Rope Vibration Isolator with 113mm*40mm Size 32.5±mm Thickness and 1000℃-1800℃ Service Temperature

가장 좋은 가격 을 구하라

GX-30AN Wire Rope Vibration Isolator with Exceptional Environmental Adaptability, Corrosion Resistant and Good Thermal Shock Resistance

가장 좋은 가격 을 구하라

Customized Wire Rope Vibration Isolator for Quiet Operation Stable Equipment Performance with Excellent Damping GX-20AN

가장 좋은 가격 을 구하라

저희와 연락

86-29-88292913

지금 연락하세요

제품 설명

Upgrade Your Equipment's Vibration Control with GX-50AN Customized Products by Xi'an Hoan Microwave

GX-N Series Wire Rope Vibration Isolators

When selecting a vibration isolator, the initial purchase cost is merely the tip of the iceberg. The true value lies in the product's service life, maintenance requirements, and prevention of downtime losses.

Long-lasting Durability, Controllable Costs

Xi'an Hoan Microwave's GX-N Series wire rope vibration isolators deliver exceptional total lifecycle value with their ultra-long fatigue life and near-maintenance-free features.

Key advantages of the GX-N Series:

Constructed with high fatigue strength stainless steel wire rope for minimal performance degradation
Maintains stability through millions of vibration cycles without cracking or deformation
Potential to last the entire service life of your equipment
Significantly reduces spare parts and maintenance labor costs
Ensures stable operation of main equipment to prevent costly downtime

Structural Dimension Diagram

Model	L(mm)	A±0.3	H±1.5	W±1.5	d
GX-10A(N)	55	49	21	26	M3-7H
GX-20A(N)	84	68	29	35	M5-7H
GX-30A(N)	113	97	32.5	40	M5-7H
GX-40A(N)	113	97	32.5	40	M5-7H
GX-50A(N)	113	97	33	40	M5-7H
GX-60A(N)	133	117	31	40	M5-7H

Vibration and Impact Performance

Technical Parameters

Technical Parameter	GX-10A(N)	GX-20A(N)	GX-30A(N)	GX-40A(N)	GX-50A(N)	GX-60A(N)
Pz Nominal Load(N)	Downward Pressure
Resonance Magnification	≤4
High Vibrating Efficiency	≥95%
Working Temperature	-55°C to +120°C
Shock(Ks)	30g/6ms
Peak Response G	≤3.5km/s²
Vibration (Kv)	Accord with National Military Standard GJB150-16
